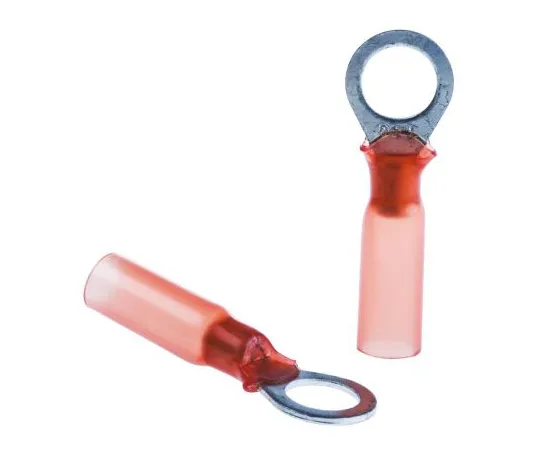

63-6657-08 Insulated Round Crimp Terminal Stud Diameter: M6 Red DuraSeal Series 22 AWG to 18 AWG DR-2-60
model:
63-6657-08
brand:
TE Connectivity
Product Description
Product Model: 63-6657-08Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6657-08
Product Brand: TE Connectivity
Features
- UL
- TE Connectivity DuraSeal Ring Terminal
- DuraSeal crimp ring terminals with environmentally sealed wire connections insulate electrical connections and protect against mechanical damage, vibration, wire pull-out and friction, as well as water resistance and resistance to salt and other contaminants. The barrels of these DuraSeal crimping ring terminals are covered with heat-shrinkable nylon tubing that is cut and abrasion resistant with a heat-soluble adhesive inside.
- Red, 0.25-1.6 mm2 Blue, 1.0-2.6 mm2 Yellow, 2.7-6.6 mm2
Spec
- Quantity: 1 bag (50 pieces)
- Series: DuraSeal
- Insulation: Insulation
- Insulation: Nylon
- Inner ring diameter: 6.5 mm
- Minimum wire size mm2: 0.5 mm2
- Minimum wire size AWG: 22 AWG
- Stud Size: M6
- Color: Red
- Contact Material: Copper Alloy
- Thickness: 1.4 mm
- Total length: 36 mm
- RoHS compliance status: Compliance
- Securities Code: 465 -671
