63-6654-74 Header-amplifier latch for board connection 10 pole 2.54 mm 2 row right angle 2-1761607-3
Electronic/Electrical Parts and Controll Equipments

63-6654-74 Header-amplifier latch for board connection 10 pole 2.54 mm 2 row right angle 2-1761607-3

model: 63-6654-74
brand: TE Connectivity

Product Description

Product Model: 63-6654-74Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6654-74
Product Brand: TE Connectivity

Features

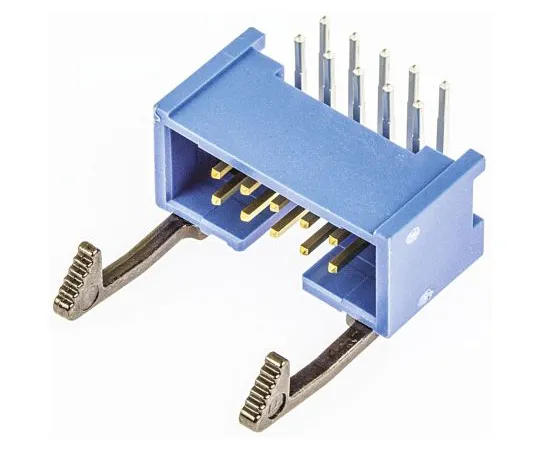

  • TE Connectivity AMP-LATCH Ribbon Cable Headers with Military/Center Polarity The AMP-LATCH ribbon cable board header connector has a low profile design with a pitch of 2.54 x 2.54 mm. This AMP-LATCH ribbon cable header has military/center polarity and an ejector latch. Ejector latches provide a secure connection to or easy removal from the IDC ribbon cable receptacle connector that engages. This AMP-LATCH board ribbon cable header connector has a long or short latch. Part numbers X-1761606-X and X-1761607-X are equipped with long latches Part numbers X-1761608-X and X-1761609-X are equipped with short latches The connector of the long latch engages with the receptacle connector without strain relief. The short-latch connector meshes with the receptacle connector in strain relief.
  • Features & Benefits: Low Profile Design Military/Center Polarity Ejector Latch for Reliable Connection and Easy Removal Long/Short Ejector Latch Option • Use: This AMP-LATCH board header is suitable for a wide range of applications. Main applications: PCs, office equipment, medical equipment, storage, networking, industrial controls, electrical products, electrical testing, etc.

Spec

  • Number of pieces: 1
  • Series: AMP-LATCH
  • Pitch: 2.54 mm
  • Number of contacts: 10
  • Number of lines: 2
  • Body orientation: right angle
  • Shroud/Unshroud: Shroud
  • Installation type: through hole
  • Terminal Method: Solder
  • Contact Plating: Gold Flash
  • Rated voltage: 250 V ac
  • RoHS compliance status: Compliance
  • Securities Code: 461 -332
