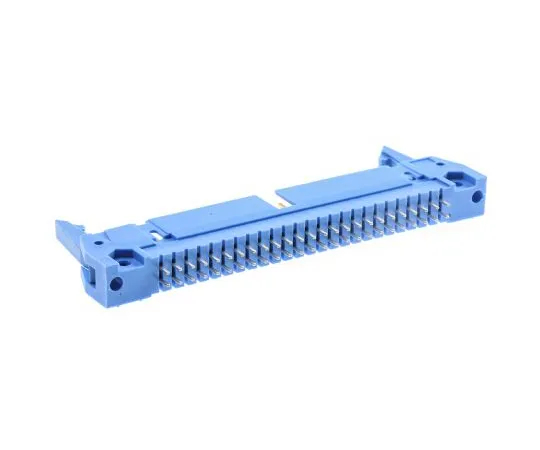

63-6654-62 Board Header 50 poles 2 rows straight wire to board 2.54 mm amplifier latch 3-5499206-0
model:
63-6654-62
brand:
TE Connectivity
Product Description
Product Model: 63-6654-62Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6654-62
Product Brand: TE Connectivity
Features
- TE Connectivity AMP-LATCH universal eject 2.54 mm x 2.54 mm board header
- AMP-LATCH universal eject board header connector with 2.54 x 2.54 mm spacing. These AMP-LATCH eject headers have military center/dual polarization and can be accurately combined. Some versions of these AMP-LATCH universal headers have ejector latches and can be easily and securely attached to the interlocking IDC ribbon cable receptacle connector. These AMP-LATCH universal ribbon cable header connectors are available in unlatched, long-latched, and short-latched types. The connector on the long latch meshes with the receptacle connector without strain relief. The short-latch connector meshes with the receptacle connector in strain relief.
- Features and Benefits: Military, Center/Dual Polarized Ejector Latches for Reliable Clamp Connection and Easy Removal Long/Short Ejector Latch Option
- Applications: This AMP-LATCH board connector is suitable for a wide range of applications. Main applications: PCs, office equipment, medical equipment, storage, networking, industrial controls, electrical products, electrical testing, etc.
Spec
- Number of pieces: 1
- Series: AMP-LATCH
- Pitch: 2.54 mm
- Number of contacts: 50
- Number of lines: 2
- Body orientation: straight
- Shroud/Unshroud: Shroud
- Installation type: through hole
- Terminal Method: Solder
- Contact Plating: Gold
- Rated voltage: 250 V ac
- RoHS compliance status: Compliance
- Securities Code: 461 - 073
