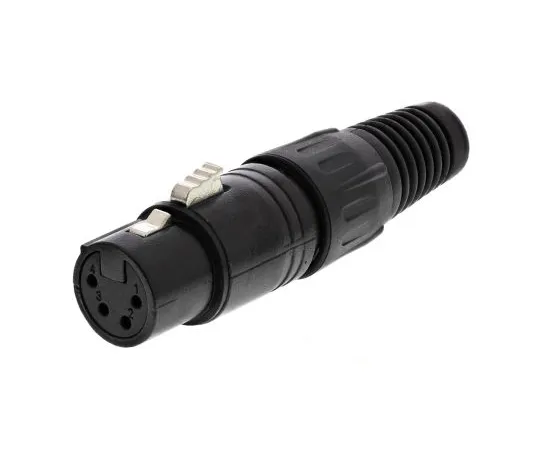

63-6653-89 RS PRO Cable Mount XLR Connector, Female, 250 V ac, 4 Way, Silver Plating 457-885
Product Description
Product Model: 63-6653-89Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6653-89
Product Brand: RS PRO
Features
- RS Pro cable connector (with back shell) • The RS Pro multipole audio/video connector is manufactured for professional ***. The "AXR"/"XLR" compatible connectors are precisely manufactured with zinc die-cast bodies and silver-plated solid brass turning contacts. A major advantage of these connectors is the "squeeze" release clip, which allows plugs and sockets to be removed quickly with a simple depressing mechanism. It is also easy to wire and assemble, and the collet placement provides effective cable grip for cable diameters ranging from 2.8 mm to 8.0 mm. All models boast high reliability and excellent quality.
- Features and Benefits: Solder tag with holes for improved connection retention and high reliability
- Black or natural shell color
- Male or female type available
Spec
- Number of Contacts:4
- G***er:Female
- Mounting Type:Cable Mount
- Body Orientation:Straight
- Colour:Black
- Contact Plating:Silver
- Housing Material:Zinc
- Termination Method:Solder
- Current Rating:10A
- Voltage Rating:250 V ac
- Contact Material:Brass
- Minimum Operating Temperature:-30°C
- Maximum Operating Temperature:+80°C
- CODE No.:457-885
