Electronic/Electrical Parts and Controll Equipments

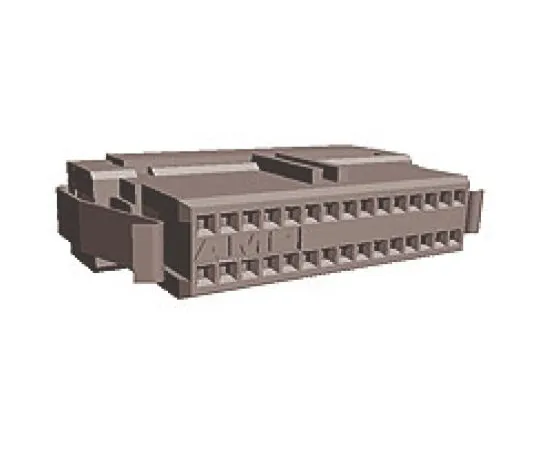

63-6651-92 IDC Connector AMP-LATCH System 50 Series 26 Pole 2 Row Female 1.27 mm Pitch 2-0111196-9
model:
63-6651-92
brand:
TE Connectivity
Product Description
Product Model: 63-6651-92Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6651-92
Product Brand: TE Connectivity
Features
- TE Connectivity AMPMODU 1.27 x 2.54 mm System 50 Ribbon Cable Socket
Spec
- Number of pieces: 1
- Number of contacts: 26
- Number of lines: 2
- Male and female: female
- Pitch: 1.27 mm
- Mounting type: cable mount
- Body orientation: right angle
- Terminal method: IDC
- Current rating: 500 mA
- Contact Plating: Gold on Nickel
- Series: AMP-LATCH System 50
- Operating temperature Min: -65 degrees C
- Operating temperature Max: + 105 degrees C
- Rated voltage: 30 V ac
- Housing Material: Liquid Crystal Polymer
- RoHS compliance status: Compliance
- Securities Code: 452 - 082
