Features

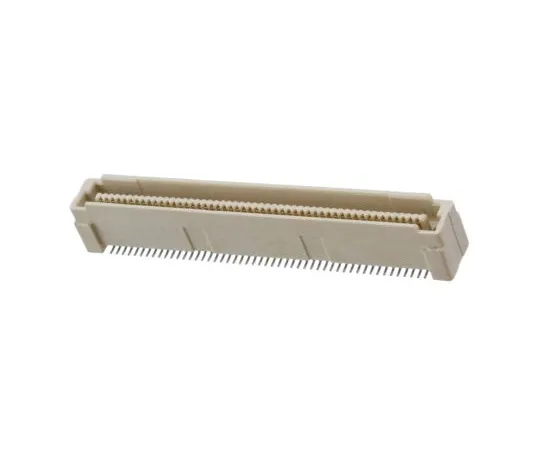

• Stack height = [(receptacle height + plug height) -5] TE Connectivity 0.8 mm Free Height (FH) Vertical Substrate-to-Substrate Plug Connector 0.8 mm Free Height (FH) Substrate-to-substrate or mezzanine SMT plug connector for parallel substrate stacking applications. These FH board connectors feature a high density 0.8 mm center line design, providing significant space savings on the board. These FH connector contacts have a bellowed spring design, allowing them to resist scooping and stubbing when engaged or removed. This contact design provides reliable electrical connections and high signal quality. These 0.8 mm FH plugs have a polarity for accurate engagement and a board positioning boss for accurate placement on the board. When the FH plug is engaged at various substrate mounting receptacle heights, a substrate to substrate stacking height of 5 → 20 mm is achieved.
• Features & Benefits: Compact, high-density, space-saving design 5 → 20 mm wide stack Highly reliable electrical connections and high signal quality Polarized housing to prevent mis-engagement Positioning bosses on board Accurate placement Applications: These 0.8 mm FH SMT header connectors are ideal for size reduction in high-*** computing, communications, industrial, military and aerospace applications requiring parallel stacked boards. Applications include test cards and card ext***ers, communications equipment, and electronics that require miniature high-density connectors.
