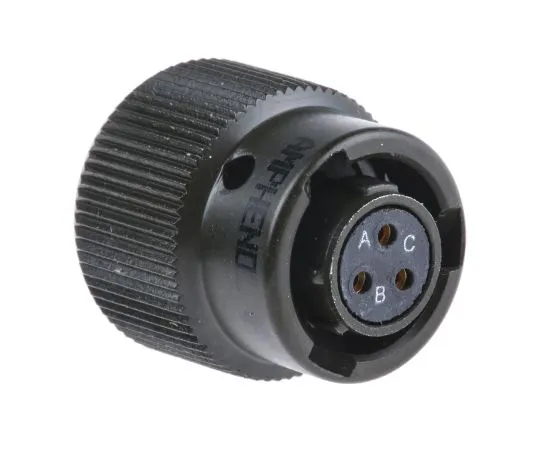

63-6651-15 MIL Standard Round Connector 62 GB Series Male 3 Pole 62GB-56T08-33SN
Electronic/Electrical Parts and Controll Equipments

63-6651-15 MIL Standard Round Connector 62 GB Series Male 3 Pole 62GB-56T08-33SN

model: 63-6651-15
brand: Amphenol

Product Description

Product Model: 63-6651-15Product Brand: Amphenol Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6651-15
Product Brand: Amphenol

Features

  • The cable mount plug (pin contact) engages only the chassis socket. The cable mounting socket is compatible with the chassis plug. The cable clamp (strain relief) can be selected separately. A spin-coupling backshell is also provided. Refer to product number 241-1294.
  • Amphenol 62 GB Series Miniature Bayonet Lock Connectors
  • The Amphenol 62 GB miniature round bayonet connector ***s a convenient bayonet lock coupling system for secure connections. This 62 GB miniature bayonet lock connector is durable, versatile, and meets the stringent requirements of the MIL-DTL-26482 military standard. This connector is manufactured from solid aluminum rods and has a zinc cobalt olive drab finish for high corrosion resistance. When engaged, this 62 GB miniature round connector provides advanced environmental protection. This connector is complete with gold-plated solder bucket contacts. The 62 GB series connectors have the same design and functionality as the MIL-DTL-26482, but with additional key grooves to prevent accidental bite.
  • Features and Benefits: Reliable connection with bayonet lock kanging system Military specifications compliant with MIL-C-26482E Advanced environmental protection, durable structure with stainless steel shell during kanging High corrosion resistance with zinc cobalt olive drab finish Key gold plated contacts included to prevent accidental kanging
  • Product application information
  • This durable 62 GB miniature bayonet connector can withstand harsh environments and extreme temperatures and is ideal for *** in many military and industrial connector applications.

Spec

  • Number of pieces: 1
  • Number of contacts: 3
  • Male and Female: male
  • Contact G***er: Female
  • Rated voltage: 500 V ac, 700 V dc
  • Shell Size: 8
  • Mounting type: cable Mount
  • Mill Standard: MIL-DTL -26482
  • Terminal Method: Solder
  • Joining type: Bayonet coupling
  • Body orientation: straight
  • Series: 62 GB
  • Operating temperature Min: -55 degrees C
  • RoHS compliance status: Compliance
  • Securities Code: 450 -348
