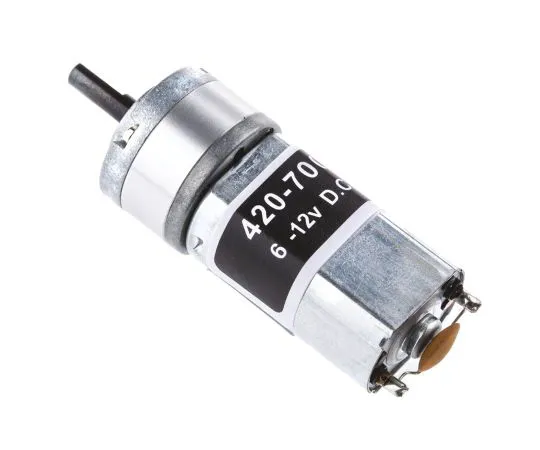

63-6642-52 RS PRO Brushed Geared DC Geared Motor, 1.5 W, 12 V, 24 mNm, 1675 rpm, 4mm Shaft Diameter 420-700
Product Description
Product Model: 63-6642-52Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6642-52
Product Brand: RS PRO
Features
- 22mm Planetary Geared Motor - 944D Series
- This range is designed for smaller industrial and modelling applications
- Due to its size and power it is very popular with design engineers in many fields
- It has a high quality 3 pole motor with carbon brushgear, is of metal construction with acetyl first stage gears for noise reduction
- The output shaft is 4mm diameter with a key flat.
Spec
- Supply Voltage:12 V dc
- DC Motor Type:Brushed Geared
- Power Rating:1.5 W
- Output Speed:2000 rpm
- Shaft Diameter:4mm
- Maximum Output Torque:24 mNm
- Gearhead Type:Planetary
- Current Rating:200 mA
- Length:46.4mm
- Width:22mm
- Core Construction:Iron Core
- CODE No.:420-700
