Electronic/Electrical Parts and Controll Equipments

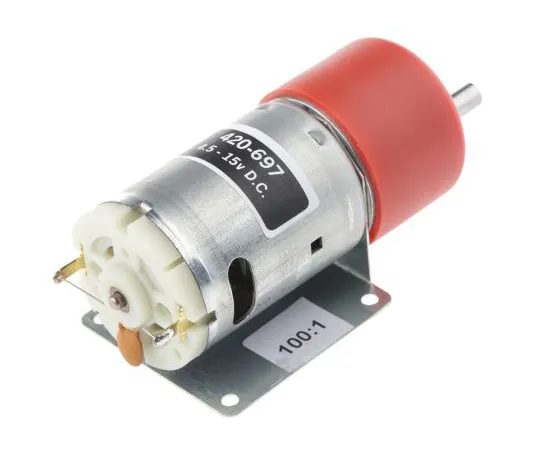

63-6642-51 RS PRO Brushed Geared DC Geared Motor, 19.8 W, 4.5 → 15 V, 59 Ncm, 120 rpm, 6mm Shaft Diameter 420-697
Product Description
Product Model: 63-6642-51Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6642-51
Product Brand: RS PRO
Features
- MODEL MOTOR AND GEAR BOX - SPAR
- This small gearbox is made of steel and brass, and the gears are mounted on a brass, 1 mm thick steel bracket. Three-pole motor with high quality sleeve bearing is adopted. Design and construction suitable for various models and light industrial applications. Industrial Use
- Features and Advantages: All gear ratios are available for 4 mm output shaft parts
- RE280, RE280/1, RE280/5 motors available
- Unloaded backlash: up to 2 °
Spec
- Supply Voltage:12 V dc
- DC Motor Type:Brushed Geared
- Power Rating:19.8 W
- Output Speed:143 rpm
- Shaft Diameter:6mm
- Maximum Output Torque:59 Ncm
- Gearhead Type:Spur
- Current Rating:2.81 A
- Length:78mm
- Width:37mm
- Core Construction:Iron Core
- CODE No.:420-697
