Electronic/Electrical Parts and Controll Equipments

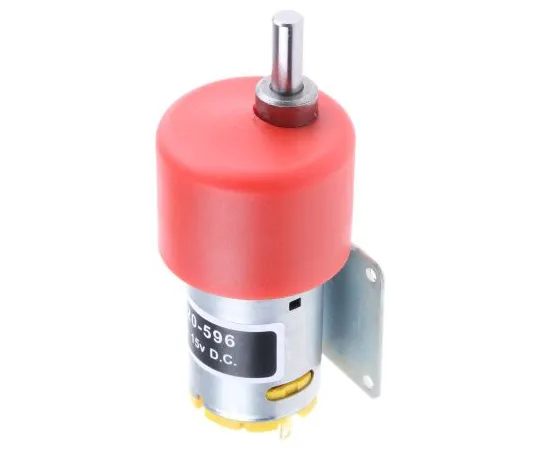

63-6642-36 RS PRO Brushed Geared DC Geared Motor, 7.98 W, 12 V, 59 Ncm, 116 rpm, 6mm Shaft Diameter 420-596
Product Description
Product Model: 63-6642-36Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6642-36
Product Brand: RS PRO
Features
- The parameters shown in the table are the values when using 12 V.
- 35 mm Spur Gear Type Motor
- Robust Equipment Boasting High Quality 5 Pole Motor for Industrial and Model Applications Sintered Bronze Bearing The bronze output bearing delivers high torque from the motor to the gearbox The unit is mounted on a 1 mm thick plated steel bracket
Spec
- Supply Voltage:12 V dc
- DC Motor Type:Brushed Geared
- Power Rating:7.98 W
- Output Speed:116 rpm
- Shaft Diameter:6mm
- Maximum Output Torque:59 Ncm
- Gearhead Type:Spur
- Current Rating:990 mA
- Length:65mm
- Width:37mm
- Core Construction:Iron Core
- CODE No.:420-596
