Features

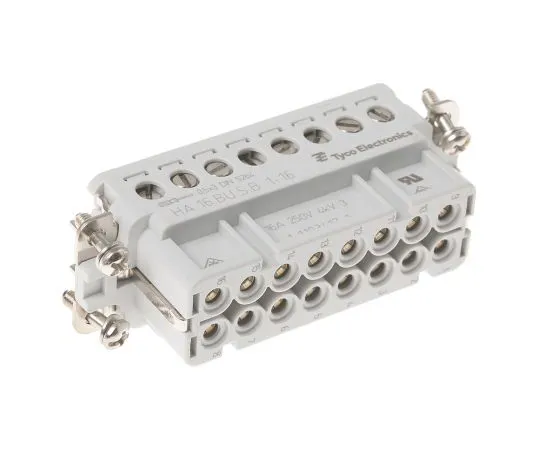

• UL, CSA Certified, SEV • HA Insert • Male/female inserts can be attached to either the cable hood housing or the base housing.
• To create a separate ground contact 32 pole male connector for each insert, you must purchase both 1-16 pole (16 pole) and 17-32 pole inserts.　These inserts attach side by side to the 32 pole housing.　To create a 32 pole female connector, you must purchase two 1-16 pole (16 pole) inserts.　These inserts attach side by side to the large 32 pole housing.　The pin of the crimped contact with the serial number twist lock screw/spring clamp contact for high density application is required to be ordered separately. Product number; See 416-171 416-171. Part number for the appropriate crimping tool; See 416-199 416-199
