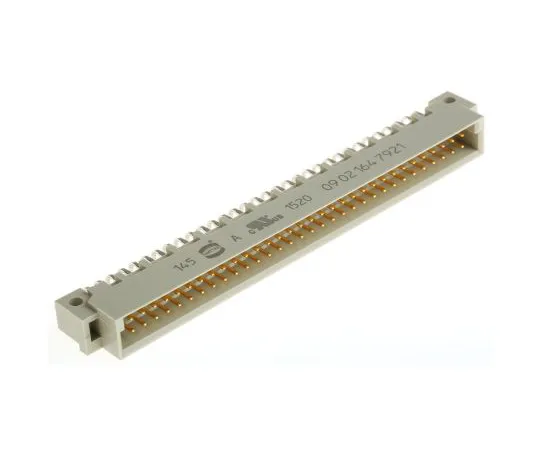

63-6634-89 DIN 41612 Connector Male 64 Pole 2 Row 2.54 mm pitch 09021647921
Product Description
Product Model: 63-6634-89Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-6634-89
Product Brand: HARTING
Features
- Harting DIN41612 Type B Backplane Signal Connector
- The Harting DIN41612 Type B backplane signal connector is designed for substrate applications up to 2 A per contact. The DIN 41612 PCB signal connector with excellent cyclic life, abrasion resistance and high durability provides an economical solution for many electronic connector design applications. Product number; 757-7989 757-7989 and; 757-7964 757-7964 is approved for railway applications under the Railway Classification NFF16-101, Smoke Index F1 and Flame Retardant Grade I2.
- Operating Temperature Range: -55 → +125 °C Up to 2 A (per contact) Test Voltage: 1 kV Contact Resistance: 20 mΩ or Less Thermoplastic Resin - Copper Alloy with Glass Fiber Contact Termination Method - Solder
Spec
- Quantity: 1 piece
- Number of contacts: 64
- Male and female: male
- Number of lines: 2
- Body orientation: right angle
- Terminal Method: Solder
- Loading column: a/b
- Type: B
- pitch: 2.54 mm
- Mounting type: through hole
- Class Rating: C3
- Rated current: 2A
- RoHS compliance status: Compliance
- Securities Code: 406 -329
