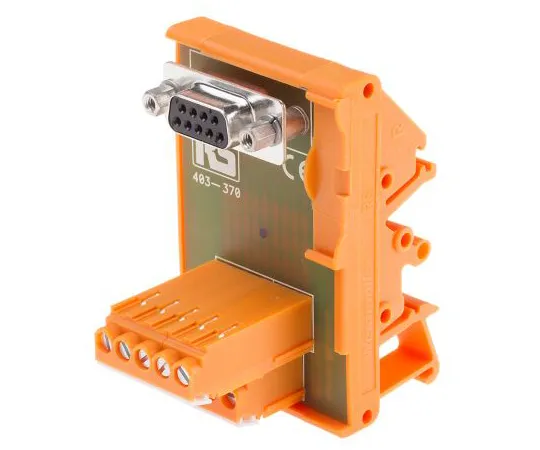

63-6633-96 RS PRO, 9 Pole D-sub Connector, Female Interface Module, DIN Rail Mount 403-370
Product Description
Product Model: 63-6633-96Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6633-96
Product Brand: RS PRO
Features
- D Subminiature
- Screw terminal interface modules with connectors suitable for interfacing electrical cabling to I/O cards and electronic equipment
- Designed to mount on standard BS 5584:1978 'DIN' rail
- Orange polyamide 6.6 housings with gold plated connector contacts
- Temperature range -20 to +50°C Height 62mm, Width 70mm Length: 9-way (45mm), 15-way (65mm), 25-way (90mm), 37-way (110mm) Suitable CSA: (Flexible)2.5mm2, (Solid)4 mm2
Spec
- G***er:Female
- Number of Contacts:9
- Connector Type:D-sub
- Mounting Type:DIN Rail Mount
- Voltage Rating:50 V
- Current Rating:1A
- Cable CSA:4mm²
- Dimensions:45 x 70 x 62mm
- Depth:62mm
- Length:45mm
- Width:70mm
- CODE No.:403-370
