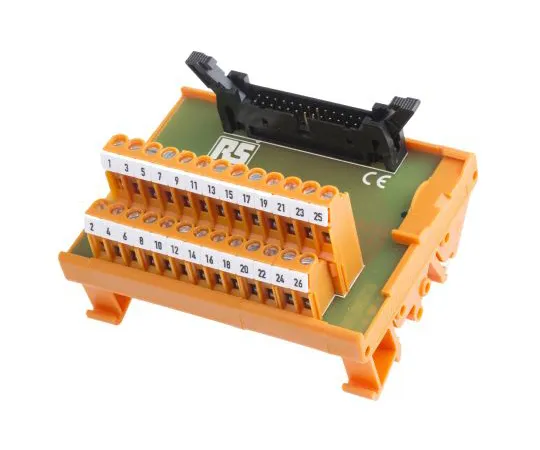

63-6633-92 RS PRO, 26 Pole IDC Connector Interface Module, DIN Rail Mount 403-320
Product Description
Product Model: 63-6633-92Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6633-92
Product Brand: RS PRO
Features
- IDC Header
- A threaded interface module with connectors suitable for connecting electrical cables to I/O cards and electronics. The orange polyamide 6.6 housing with gold-plated connectors and contacts is designed to be mounted on standard BS 5584:1978 and 146 DIN rails.
- Operating temperature range: -20 → +50 °C Suitable cable CSA: (flexible) 2.5 mm2, (solid) 4 mm2
Spec
- Number of Contacts:26
- Connector Type:IDC
- Mounting Type:DIN Rail Mount
- Voltage Rating:50 V
- Current Rating:1A
- Cable CSA:4mm²
- Dimensions:90 x 70 x 62mm
- Depth:62mm
- Length:90mm
- Width:70mm
- CODE No.:403-320
