Electronic/Electrical Parts and Controll Equipments
63-6623-62 Wire-splice Connector non-insulated bat 36906
model:
63-6623-62
brand:
TE Connectivity
Product Description
Product Model: 63-6623-62Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6623-62
Product Brand: TE Connectivity
Features
- Part number for the best manual crimping tool; 817-325 817-325 and part number; 373-308 373-308, part number for die assemblies or manual crimping tools; See 162-3159 162-3159

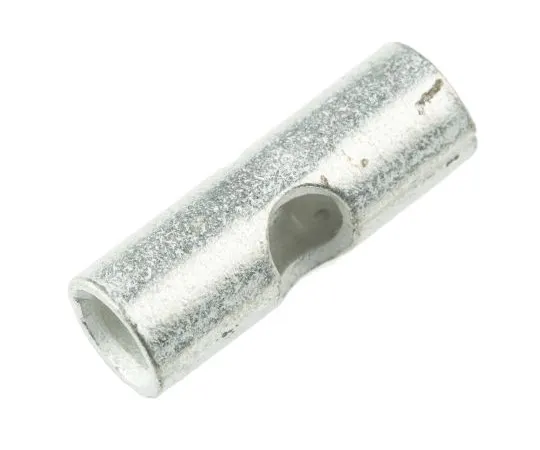

- TE Connectivity SOLISTRAND SITE HOLE CLOSED BARREL BATT SPLICE
- SOLISTRAND SITE HOLE CLOSED BARREL BATT SPLICE is designed for terminating single wire, stranded wire, or irregularly shaped conductors. This SOLISTRAND site hole closed barrel butt splice is made of fine grade, highly conductive copper with tin plating. Beca*** the barrel is closed with a brazed seam, it provides uniform metal strength around the barrel. Since the inner surface of the barrel of this SOLISTRAND site hole closed barrel butt splice is dimpled or sawed, the electrical contact area and extension strength after crimping are maximized.
Spec
- Quantity: 1 bag (50 pieces)
- Splice Type: Bat
- Cable size: 8 AWG
- Total length: 21.01 mm
- Diameter: 7.52 mm
- Insulation: Non-insulated
- Series: SOLISTRAND
- Contact Material: Copper
- Contact Plating: Tin
- Thickness: 1.22 mm
- RoHS compliance status: Compliance
- Securities Code: 373 -364
