Features

• Cable Mounted Shell Series 1/2

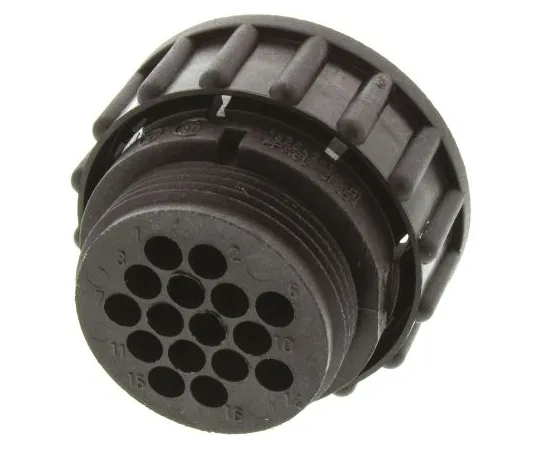

• CPC Series 1/2 cable mounted shells from TE Connectivity provide a quick, safe and convenient connection system with screw-on coupling rings. Standard and low density types are available.　The circular contact allows efficient *** of the substrate space.　The TE Connectivity CPC ***s a high-quality thermoplastic housing that provides a rugged design ideal for long-term ***.
• Series 1
• Series 1 - Standard density
• Specifically designed for signal and low current applications
• Series 1 connectors are available in 4-37 pole with signals up to 13A
• Series 1 accepts size 16 MultiMate pin and socket contacts See Instruction sheet for full list of compatible connector contacts
• Series 2
• Series 2 - High density
• Designed for applications requiring a larger number of contact density in one shell
• Series 2 connectors are available in 8-63 pole with signals up to 7.5A
• Series 2 accepts size 20 DF/DM contacts - See Instruction sheet for full list of compatible connector contacts
• Features and Benefits
• Built-in pin and socket protection
• UL 94V-0 rated and manufactured from stabilized, heat resistant, self-extinguishing thermoplastic materials
• Quick connect/disconnect features saves valuable assembly time
• Lightweight, all plastic connector less expensive than metal connectors
• Rugged and reliable
• Resistant to vibration and shock
• Applications
• The CPC series can be ***d in almost any industrial application where an effective signal solution is required
• Some of the most common are;
• Rail and transit vehicles and systems Lighting and signage HVAC and commercial building equipment Motor vehicles - bus, truck off-road and recreational, Agricultural machinery, construction equipment Industrial machinery, Industrial automation, and material handling equipment Instrumentation and testing Automation systems
• Environment
• The CPC series of circular connectors are ideal for harsh environments
• Manufactured from high-grade engineering materials with UL94V-O stabilized heat resistant housings
• FAQ
• Q - Are the circular connectors repairable A Yes, contacts are removable
• A replaceable coupling ring makes field repair easy
• Q How robust are they A - The CPC range of circular connectors from TE connectivity are manufactured from high-grade materials
• They are highly resistant to shock and vibration.
