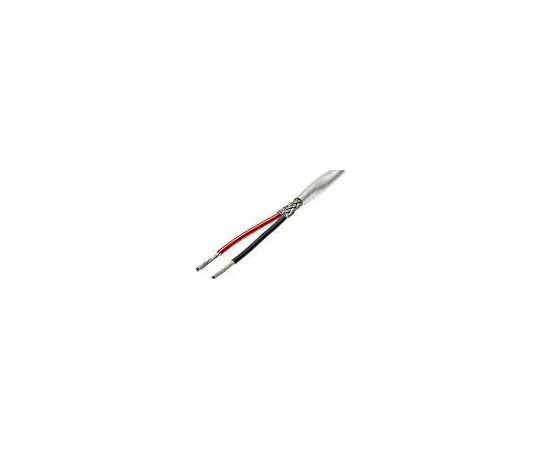

63-6623-27 Twisted Pair/Multipair Cable 1 Pair 20 100 m 44A1121-20-09-9
model:
63-6623-27
brand:
TE Connectivity
Product Description
Product Model: 63-6623-27Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6623-27
Product Brand: TE Connectivity
Features
- DOD 61-12 Part 18 Type 1 (Maintenance Wires) and Part 26 (Screens and Jackets Included) Type 44R Type 44R wires and cables are widely ***d in environmental conditions that require consistently reliable performance. This mechanically sturdy wire and cable is easy to handle and lay.
- Features/Advantages
- Double wall construction
- Small size, light weight
- Low emission of smoke and corrosive gases
- Resistance to most chemicals and electric arc tracking
- High flame resistance
- Rated voltage: 600 V
- Applications: Commercial
- Military electronics
- Aeroelectronics
- Satellite
- Aircraft
- Helicopter
- Marine
- Railway
- Military earth system
- Petroleum industry
Spec
- Quantity: 1 reel (100 meters)
- Pairs: 1
- Cross-sectional area: 0.6 mm 2
- Cable Type: Type 44
- AWG American Wire Gauge Standard: 20 AWG
- Outer diameter: 3.81 mm
- Shield Type: S/UTP
- Sheath color: white
- Core Strand: 19/0.2 mm
- Allowable Voltage: 600 V
- Combustion behavior: flame retardancy, low smoke density, self-extinguishing
- RoHS compliance status: Compliance
- Securities Code: 362 -594
