Electronic/Electrical Parts and Controll Equipments

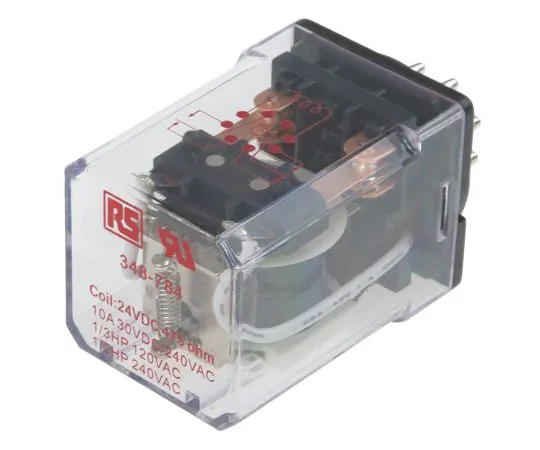

63-6622-07 RS PRO, 24V dc Coil Non-Latching Relay DPDT, 10A Switching Current Plug In, 2 Pole 348-784
Product Description
Product Model: 63-6622-07Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6622-07
Product Brand: RS PRO
Features
- 10 A Industrial Relay • Clear polycarbonate cover protects DIN Rail or surface mount Contact Material: Ag + Au Flash Plated Contact Rating: 10 A Maximum switching voltage: 250 V ac, 30 V dc Mechanical life: Operation 10 7 times (min) Electrical life: Operation 10 5 times (min) Maximum temperature at rated coil voltage: 65 °C Dimensions: H 53 mm, W 36 mm, D 36 mm Socket available (8 pin socket part number < 403-235 & 402-147') 403-235 & 402-147/, 11 pin socket part number < 402-153 & 403-241') 402-153 & 403-241 11 pin relay cover available (part number < 402-169') 402-169
Spec
- Coil Voltage:24V dc
- Coil Power:1.2W
- Coil Resistance:478 Ω
- Isolation Coil To Contact:1.5kV ac
- Contact Configuration:DPDT
- Mounting Type:Plug In
- Switching Current:10A
- Terminal Type:Through Hole
- Number of Poles:2
- Maximum Switching Voltage AC:240V
- Maximum Switching Voltage DC:30V
- Standards Met:CUR E125370, UL E125370
- CODE No.:348-784
