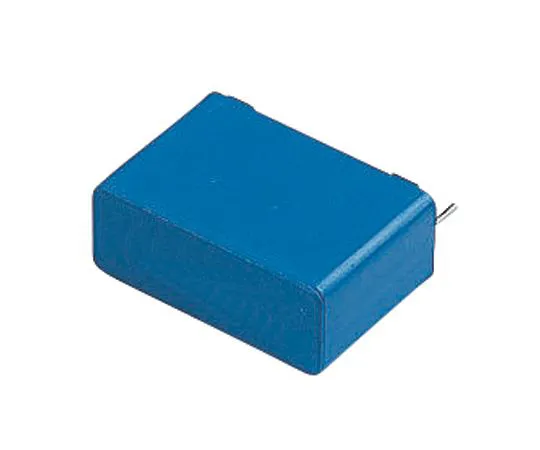

63-6620-87 Polyester Capacitor (PET) 200 V ac, 630 V dc 100 nF ±5% 1 Bag (10 Pieces) B32522Q8104J000
Product Description
Product Model: 63-6620-87Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6620-87
Product Brand: EPCOS
Features
- B32521~B32524 Series
- Typical applications: High contact reliability stacked film with RFI pulse resistance for common block, coupling, decoupling, bypass and automotive applications and winding technology Epoxy resin sealed plastic casing (UL94 V-0)
Spec
- Quantity: 1 Bag (10 Pieces)
- Capacitance: 100 nF
- Voltage: 200 V ac, 630 V dc
- Mounting Type: Through Hole
- Lead Pitch: 15 mm
- Series: B32522
- Tolerance: ±5%
- temperature characteristics: PET
- Length: 18 mm
- Depth: 7 mm
- Height: 12.5 mm
- Dimensions: 7 x 12.5 x 18 mm
- Operating temperature Min: -55°C
- Operating temperature Max: +125°C
- Lead Diameter: 0.8 mm
- RoHS compliance status: Compliance
- Securities Code: 334-978
