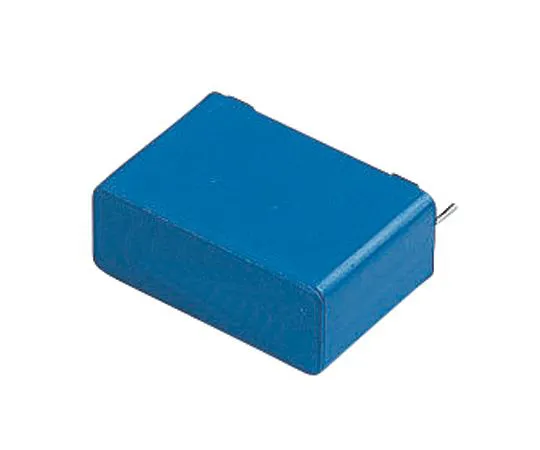

63-6620-74 Polyester Capacitor (PET) 160 V ac, 250 V dc 220 nF ±5% 1 Bag (10 Pieces) B32521C3224J000
Product Description
Product Model: 63-6620-74Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6620-74
Product Brand: EPCOS
Features
- B32521~B32524 Series
- Typical applications: High contact reliability stacked film with RFI pulse resistance for common block, coupling, decoupling, bypass and automotive applications and winding technology Epoxy resin sealed plastic casing (UL94 V-0)
Spec
- Quantity: 1 Bag (10 Pieces)
- Capacitance: 220 nF
- Voltage: 160 V ac, 250 V dc
- Mounting Type: Through Hole
- Lead Pitch: 10 mm
- Series: B32521
- Tolerance: ±5%
- temperature characteristics: PET
- Length: 13 mm
- Depth: 5 mm
- Height: 11 mm
- Dimensions: 5 x 11 x 13 mm
- Operating temperature Min: -55°C
- Operating temperature Max: +125°C
- Tolerance (Plus): +5%
- RoHS compliance status: Compliance
- Securities Code: 334-782
