Electronic/Electrical Parts and Controll Equipments

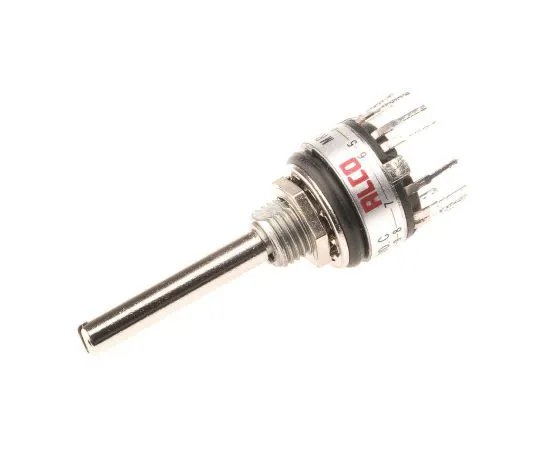

63-6619-60 Rotary Switch 12 Pole Panel Mount MRJE1-1204
model:
63-6619-60
brand:
TE Connectivity
Product Description
Product Model: 63-6619-60Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6619-60
Product Brand: TE Connectivity
Features
- Miniature rotary switch, IP67
- Sealed miniature rotary switch protected by IP67 grade Brake before makeup contact made of gold-plated nickel for long life and high reliability. The tip of the shaft has a groove for a screwdriver and can be ***d without a knob
- Application: Ideal for dry circuit switching such as communication equipment and portable test/monitoring equipment Panel mounting/Board mounting Panel cutout: O6.4 mm Shaft: O3.30 mm, Length: 19 mm
Spec
- Number of pieces: 1
- Contact Configuration: SP
- Contact current rating: 400 mA @ 20 V
- Number of switch locations: 12
- Number of contacts: 1
- Rated voltage: 20 V ac/dc
- Depth: 11.94 mm
- Width: 11.94 mm
- Dimensions: 11.94 x 11.94 x 34.04 mm
- Mounting Type: Panel Mount
- Terminal type: through hole
- Operating temperature Max: + 70 degrees C
- RoHS compliance status: Compliance
- Securities Code: 327 -945
