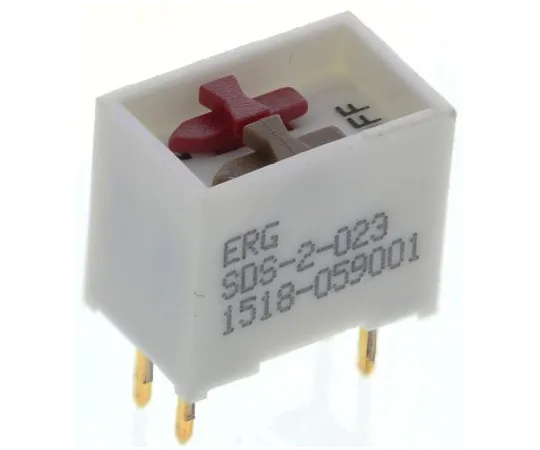

63-6618-69 2 Way Through Hole DIP Switch DPST 321-076
Product Description
Product Model: 63-6618-69Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6618-69
Product Brand: RS PRO
Features
- Unless otherwise ****d, these switches are not suitable for immersion cleaning
- Lateral motion switch
- Configuration selectable Tape seal structure required to prevent infiltration of cleaning fluid during flow soldering processNon-switching rating: 5 A (100 V AC) Contact resistance: 10 mΩ
Spec
- Contact Configuration:DPST
- Contact Current Rating:1 A @ 100 V
- Contact Material:Gold Plated
- Number of Positions:2
- Mounting Type:Through Hole
- Actuator Type:Slide
- Package Style:DIP
- Mechanical Life:10000Operations
- Maximum Operating Temperature:+100°C
- Minimum Operating Temperature:-55°C
- Operating Temperature Range:-55 → +100°C
- Voltage Rating:100V ac
- CODE No.:SDS-2-023
