Features

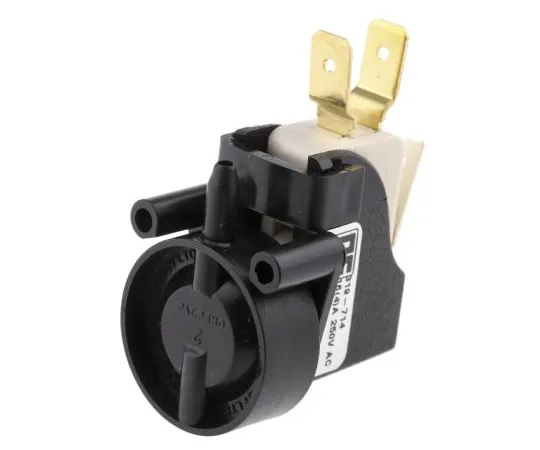

• Air Actuated Switches, Unipolar Elements, Surface Mounted/Through Panels
• Suitable for *** with all air actuators and accessories, momentarily or latched unipolar air actuated switches include a surface mount type that connects the air tube to the side and a through panel mount type that connects the air tube to the base The through panel type is ideal when all electrical connections need to be sealed and separated from the environment in the enclosure The through panel mount is enabled by a 9/16 UNF nut (included). Alternatively, surface-mountable by using an additional 3.2 mm diameter mounting hole suitable for M3 or No. 6 self-tapping screws. The SPDT microswitch contacts are rated 15 A 250 V ac/30 V dc with 250 (1/4 inch) connection terminals.　Operating temperature range: -10 °C → +60 °C (dep***s on the length of the tube). See Data Table)
