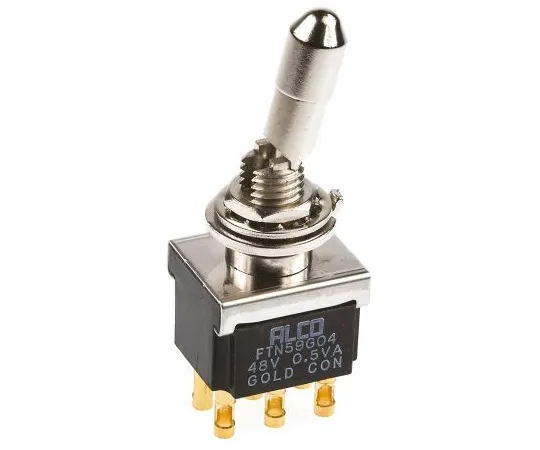

63-6618-23 Toggle Switch On-On DPDT Panel Mount 400 mA @ 20 V Solder Terminal FTN59G04
model:
63-6618-23
brand:
TE Connectivity
Product Description
Product Model: 63-6618-23Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6618-23
Product Brand: TE Connectivity
Features
- The '(on)' of the CSA
- bias switch indicates the momentary 'on' position.
- Toggle Switch, Miniature, Lock Lever
- A switch equipped with a lock lever that prevents accidental operation. The lever is fixed to one switch position and switched to the other position by pulling the lever out and moving it against the spring retainer. Gold contact: Part number:; 317-572 317-572,; 317-588 317-588 Silver Contact: Part Number:; 317-601 317-601 Glass Fiber Polyester Case
Spec
- Number of pieces: 1
- Contact Configuration: DPDT
- How the switch works: On-On
- Contact current rating: 400 mA @ 20 V
- Mounting Type: Panel Mount
- Terminal Type: Solder
- Panel cutout diameter: 6.2 mm
- Actuator length: 10.5 mm
- Actuator Material: Brass
- Contact resistance: 10 m.OMEGA.
- Operating temperature Min: -20 degrees C
- RoHS compliance status: Compliance
- Securities Code: 317 -588
