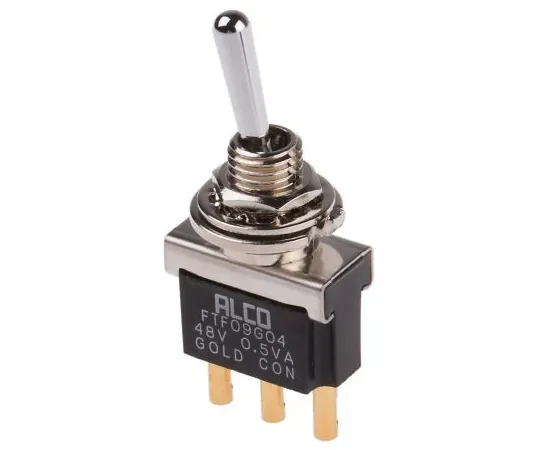

63-6618-13 Toggle Switch (On) - On SPDT Panel Mount 14 mA @ 28 V dc FTF09G04
model:
63-6618-13
brand:
TE Connectivity
Product Description
Product Model: 63-6618-13Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6618-13
Product Brand: TE Connectivity
Features
- CSA • Be careful not to overheat the switch assembly during soldering. The '(on)' of the bias switch represents the 'on' position of the momentum.
- Toggle Switch, Miniature, Professional
- Slow Make/Break Operation Chrome Plating Liver Solder Bucket Terminal Waterproof Cover (Part No.); 321-212 321-212) (see Accessories) Part number; 317 077 317 077,; 317-106 317-106,; 317-112 317-112,; 317-128 317-128,; 317-083 Uses silver contacts except for 317-083 (Uses gold contacts) Maximum load 0.4VA glass fiber polyester case
Spec
- Number of pieces: 1
- Contact configuration: SPDT
- How the switch works: (On) -On
- Contact current rating: 14 mA @ 28 V dc
- Mounting Type: Panel Mount
- Terminal type: through hole
- Panel cutout diameter: 6.2 mm
- Actuator length: 16.5 mm
- Actuator material: chrome-plated brass
- Contact resistance: 20 m.OMEGA.
- Operating temperature Max: + 80 degrees C
- RoHS compliance status: Compliance
- Securities Code: 317 -106
