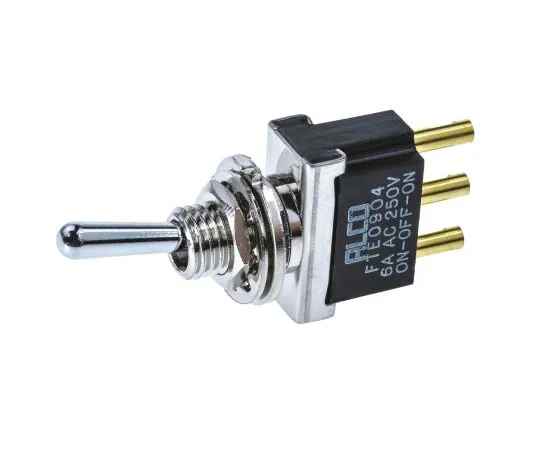

63-6618-09 Toggle Switch On-Off-On SPDT Panel Mount 4A @ 30 V dc FTE0904
model:
63-6618-09
brand:
TE Connectivity
Product Description
Product Model: 63-6618-09Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6618-09
Product Brand: TE Connectivity
Features
- CSA • Be careful not to overheat the switch assembly during soldering. The '(on)' of the bias switch represents the 'on' position of the momentum.
- Toggle Switch, Miniature, Professional
- Slow Make/Break Operation Chrome Plating Liver Solder Bucket Terminal Waterproof Cover (Part No.); 321-212 321-212) (see Accessories) Part number; 317 077 317 077,; 317-106 317-106,; 317-112 317-112,; 317-128 317-128,; 317-083 Uses silver contacts except for 317-083 (Uses gold contacts) Maximum load 0.4VA glass fiber polyester case
Spec
- Number of pieces: 1
- Contact configuration: SPDT
- Switch Behavior: On-Off-On
- Contact current rating: 4 A @ 30 V dc
- Mounting Type: Panel Mount
- Terminal type: through hole
- Panel cutout diameter: 6.2 mm
- Actuator length: 10.5 mm
- Actuator material: chrome-plated brass
- Contact resistance: 10 m.OMEGA.
- Contact Material: Pure Silver
- RoHS compliance status: Compliance
- Securities Code: 317 - 005
