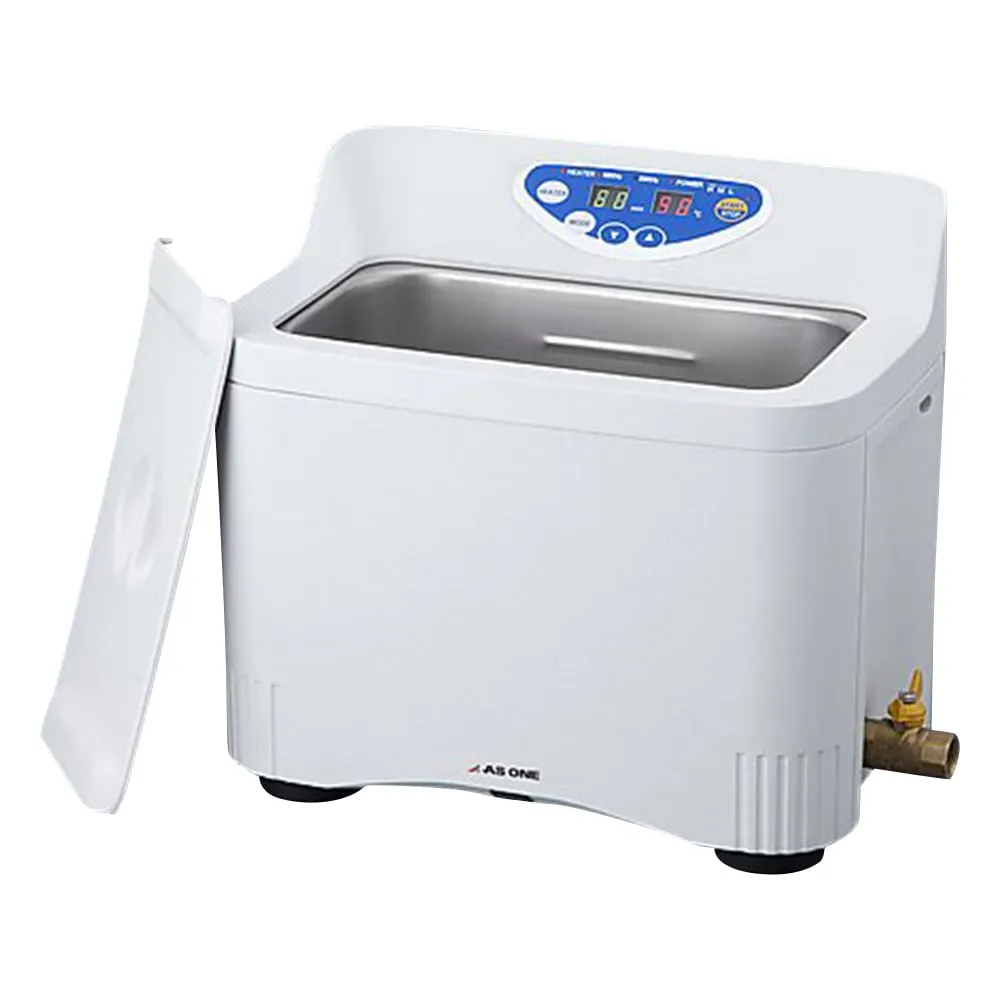

1-2161-03-22 Ultrasonic Cleaner (Dual Frequency/ASU-D Series) 380 x 247 x 340 mm with Pre-shipment Inspection Document ASU-6D
Product Description
Product Model: 1-2161-03-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-2161-03-22
Product Brand: AS ONE Corporation
Features
- The casing is made of polypropylene with excellent chemical resistance.
- The operation panel is an easy-to-operate upper panel system. In addition, the digital display with excellent visibility makes it easy to read.
- The heater operates separately from washing and stops at the set temperature.
- The power can be adjusted in 3 stages according to the cleaning product. If there is too much cleaning material, the machine automatically stops.
- The timer function ***s a subtractive digital display to check the remaining time.
- Equipped with program function, oscillation power High/Middle/Low alternating operation and intermittent operation are possible.
- By the memory function, the set temperature, time and program contents are stored even when the power is turned off.
- Ultrasonic cleaner with high output and excellent durability, using a vibrator suitable for ***.
Spec
- External Dimensions (mm): 380 x 247 x 340
- Tank Inner Dimension (mm): 303 x 152 x 150
- Tank Capacity: Approx. 5.9 L
- Material: Body/PP (Polypropylene), Tank/Stainless Steel (SUS304)
- Oscillation circuit: Other oscillation system PLL automatic tracking
- Oscillator: BLT (Bolted Langevin)
- Output: 130 W
- Oscillation frequency: 23/43kHz
- Heater Capacity: 100 W
- Power/Power Cord: 100 VAC 50/60Hz/2M 3P Plug
- Frequency Switching: 23/43kHz switching
- Oscillation power switching function: High/Middle/Low3 stages
- Program function: any combination of oscillation power, run time, and stop time/maximum of 3 programs
- Additional Functions: Heater Function (Setting Range: Normal Temperature ~60°C/1°C Increments), Timer Function (Setting Range: 1~60 Minutes/1 Minute Increments)
- Safety Functions: Overcurrent Prevention, Heater Overheating Prevention, Overload Prevention
- Drain: Manual Drain Valve Diameter Rc1/2
- Accessories: Stainless Drainboard (SUS304) x 1, Lid (ABS Resin) x 1, Nipple x 1 (Compatible Hose Inner Diameter φ13 mm)
- Weight: approx. 9 kg
- Dual Frequency ASU-D Series
- *Type designation: EU-11013
- *The size does not include the drain valve.
