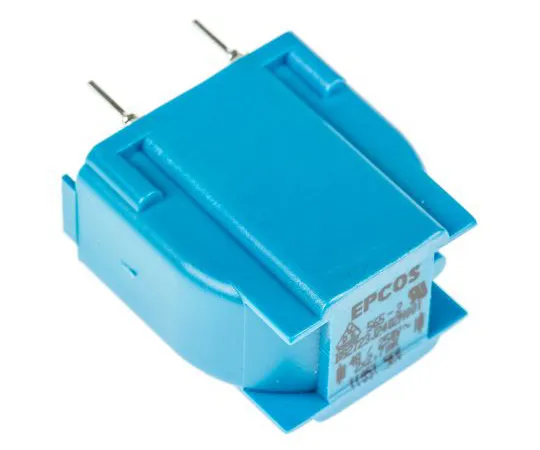

63-6602-45 Double Choke Coil 2.7 mH 4 A 60 mΩ B82723J2402N001
Product Description
Product Model: 63-6602-45Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6602-45
Product Brand: EPCOS
Features
- VDE, UL Certified Components
- VDE 0565-2 UL 1283
- Reference given for rated current I R is 50 Hz @ T A 40 °C Reference given for rated inductance L R is Coil @ 20 °C
- Epcos B82721A Series Common Mode Chokes
- Current compensation ring core double choke. Ferrite core enclosed in case with flame retardant sealed structure (UL 94 V ‐ 0) High resonant frequency applications realized by unique winding technology include switch mode power supplies for computers, televisions and other precision electronics. The chalk of B82721/2/3/4/5 A products is suitable for electronic ballast of lamps, and the chalk of B82725J products is suitable for washing machines and chargers. Low-profile horizontal (-A/-B) version Vertical (-J/-K) version saves board space
Spec
- Quantity: 1 Piece
- Inductance: 2.7 mH
- Maximum direct current: 4 A
- Mounting type: Radial
- Maximum DC Resistance: 60 mΩ
- Tolerance: ±30%
- Length: 28 mm
- Depth: 18.6 mm
- Height: 30.5 mm
- Dimensions: 28 x 18.6 x 30.5 mm
- Core Material: Ferrite
- Lead Pitch: 12.5 mm
- Series: B82721A
- RoHS compliance status: Compliance
- Securities Code: 240 – 028
