63-6594-45 Toggle Switch On-On DPDT Panel Mount 12 A @ 250 V ac, 20 A @ 125 V ac ET220N12-Z
model:
63-6594-45
brand:
Copal Electronics
Product Description
Product Model: 63-6594-45Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-6594-45
Product Brand: Copal Electronics
Features
- The ET120A12 Z does not have the "# 2" terminal shown in the drawing. The ET220K12 Z does not have terminals 2 and 5 as shown in the drawing.
- Use of nameplate and waterproof cap is optional.
- Small Toggle Switch ET Series (20 A)
- The contact structure housing with reduced chattering and bouncing time as much as possible ***s self-digestible phenol resin with excellent heat resistance, arc resistance and tracking resistance. The terminals are solder terminals.
Spec
- Number of Pieces: 1
- contact configuration: DPDT
- Switch Operation: On-On
- Contact current rating: 12 A @ 250 V ac, 20 A @ 125 V ac
- Mounting Type: Panel Mount
- Terminal Type: Solder Tag
- Actuator Length: 17 mm
- Contact resistance: 20 mΩ
- Operating temperature Min: -25°C
- RoHS Compliance Status: Compliance
- Securities Code: 222-904
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-6880-43 Connector Housing Male 6 Pole 2 Row 4.2 mm VAL-U-LOK Series 2296207-6
model: 63-6880-43
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
63-6914-58 Thin-film Chip Resistor 1608 size 0.063 W 261 ohm +/- 0.1% CPF0603B261RE1
model: 63-6914-58
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

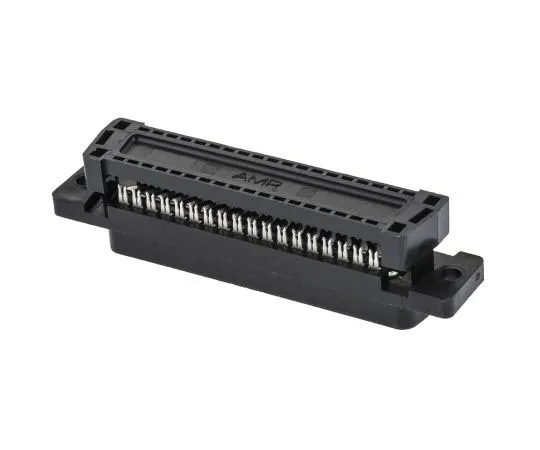

63-7529-83 TE Connectivity AMPLIMITE HDF-20 Series 2.76mm Pitch 37 Way IDC D-Sub Ribbon Cable Connector, Socket, Thermoplastic 1658614-1
model: 63-7529-83
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

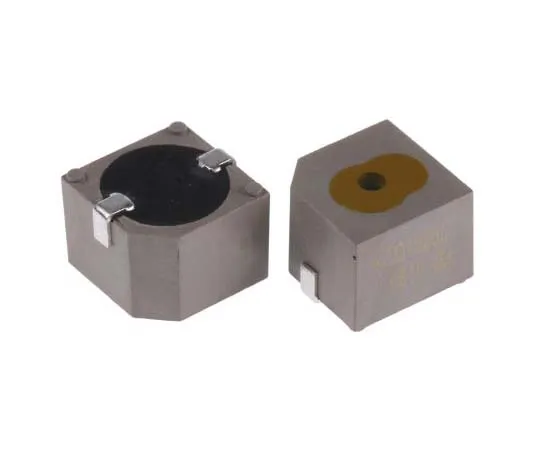

63-7804-29 RS PRO 7V Surface Mount Electromagnetic Buzzer, 94dB Continuous 754-2084
