Features

• Temporary states are written in parentheses, such as on - (on).

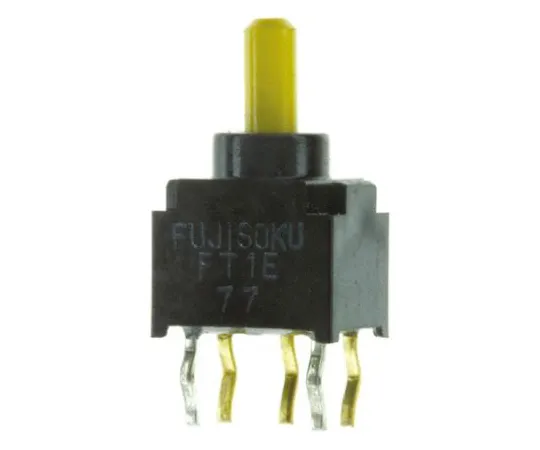

• Fujisocto Glu Switch - FT Series
• The Fujisoku FT Series is a sub-miniature PCB mount toggle switch for alternate or momentary switching operation.　You can choose between single or double pole contact configurations and a wide variety of on/off switching combinations.　Designed for board mounting, it has straight, light angle or vertical board terminals.　The immersion cleaning structure and contact clip mechanism ensure long-term stability and reliability. In addition, the FT series toggle switches feature 2.54 mm terminal spacing that conforms to standard board grid spacing and an indep***ent detent mechanism that provides a reliable operating experience.　This sub-miniature toggle switch has gold-plated contacts and can be ***d in many applications that require switching currents as low as 1 μA and 20 mV dc.
• Subminiature Body Size 4.5 x 7 x 7 mm Straight, Light Angle, Vertical Board Select from Through Hole Mounting Options Pitch Interval 0.1 inches Immersion Washable Gold Plated Contact Max Switch Rating 0.4 VA (Max. 28 V dc), Min Rating 1 μA @ 20 mV dc Low Contact Resistance 100 mΩ or less Insulation Resistance 250 V ac (1 minute) Insulation Resistance 500 MΩ or more Electrical Life 10,000 times @ Maximum Rated Operating Temperature Range -40 → +85 °C
