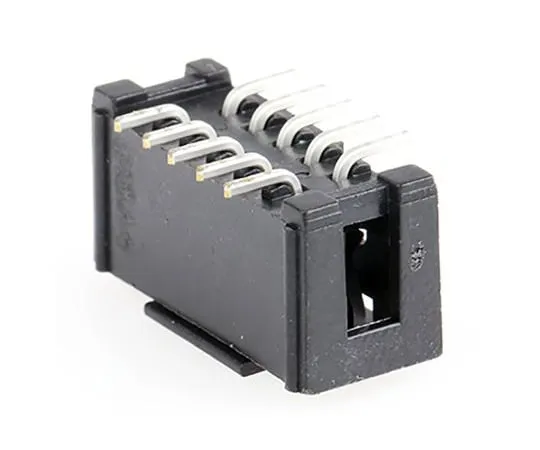

63-6588-41 Headers for Board Connections 2500 Series 10 Pole 2.54 mm 2 Row Straight N2510-6V0C-RB-WD
Product Description
Product Model: 63-6588-41Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-6588-41
Product Brand: 3M Company
Features
- UL No.: E68080, JEDEC J-STD-020C
- HE10 SMT sockets - N25xx Series
- High-temp insulation in accordance with JEDEC J-STD-020C requirements: withstands remelt temperatures and lead-free processes up to 260°C
- Packaged as slotted rolls
- The connectors feature a pick-up hood in high-temp resistant material
- The roll is composed of black ESD conductive material with a 24 mm pitch
- Contacts are visible, for inspection after soldering
- The connector body does not mask the contacts, as when using straight through-hole connectors
Spec
- Quantity: 1 bag (10 pieces)
- Series: 2500
- Pitch: 2.54 mm
- Number of contacts: 10
- Number of lines: 2
- Body orientation: straight
- Shroud/Unshroud: Shroud
- Mounting type: Surface mount
- Terminal Method: Solder
- Contact Plating: Gold
- Current rating: 2A
- RoHS compliance status: Compliance
- Securities Code: 212 -767
