Electronic/Electrical Parts and Controll Equipments

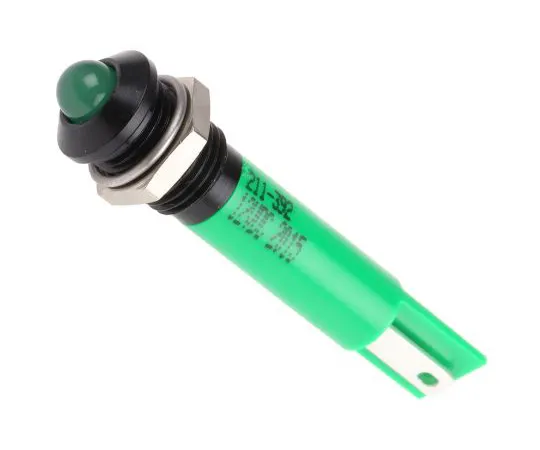

63-6587-34 RS PRO Green Indicator, 12 V dc, 8mm Mounting Hole Size, Solder Tab Termination 211-392
Product Description
Product Model: 63-6587-34Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6587-34
Product Brand: RS PRO
Features
- Fixed Nut, Washer
- LED Indicators, 12/24 Vdc, Black Chrome Bezel
- These LED indicators, delivered by the trusted RS Pro, feature a diff*** epoxy lens and chrome bezel. The body has a convenient solder lug terminal for quick and easy connection. The RS Pro LED indicators are very bright, long-life, and low power consumption, making them suitable for a variety of equipment applications.
- 5 mm Color Diffusion Epoxy Lens Length: 37 mm Estimated Life: 100,000 hours Operating Temperature Range: -25 → +75 °C 3 color types have red and green LEDs that emit a yellow 0.11 inch (2.8 x 0.8) terminal when red and green light at the same time, 3 color types only 2 x 0.5 mm Gold faston terminal indicates anode (+), silver terminal indicates cathode (-)
Spec
- Voltage Rating:12V dc
- Light Output Colour:Green
- Mounting Hole Size:8mm
- Lamp Type:LED
- Termination Type:Solder Tab
- Bezel Style:Prominent
- Current Rating:20mA
- Intensity:40mcd
- Length:33.9mm
- CODE No.:211-392
