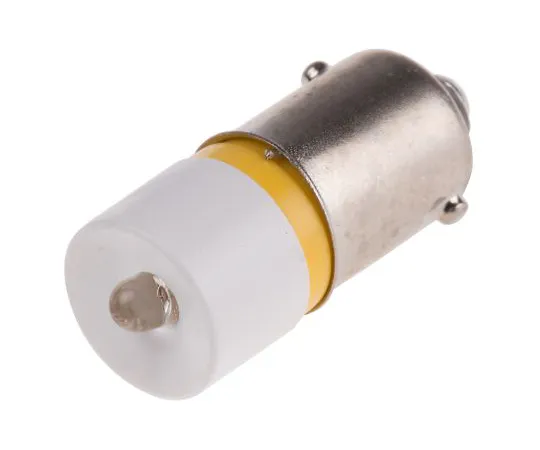

63-6586-93 LED Reflector Bulb, BA9s, Yellow, Single Chip, 10mm dia., 48V ac/dc 210-787
Product Description
Product Model: 63-6586-93Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6586-93
Product Brand: RS PRO
Features
- LED Indicator Lamps, BA9s MBC, AC/DC
- Brought to you by the trusted RS brand, these BA9 indicator lamps feature single-chip LEDs and built-in reflectors to optimize brightness while maintaining low power consumption. These lamps have convenient bayonet connectors for quick and easy installation.
- Features and benefits: Single-chip LED with reflector Estimated life: 100,000 hours 12, 24, 28, 48, 60 V ac/dc, and 130, 230 V ac types Available 12, 24, and 28 V type center base contacts are dc anodes with integrated reverse polarity protection diodes Available 48 and 60 V type polar connections can be connected to either contact when using dc
Spec
- Voltage Rating:48V ac/dc
- Light Output Colour:Yellow
- Intensity:360mcd
- Lamp Base:BA9s
- Chip Type:Single Chip
- Diameter:10mm
- Length:24mm
- Peak Wavelength:587nm
- Life Hours:100000h
- CODE No.:210-787
