Electronic/Electrical Parts and Controll Equipments

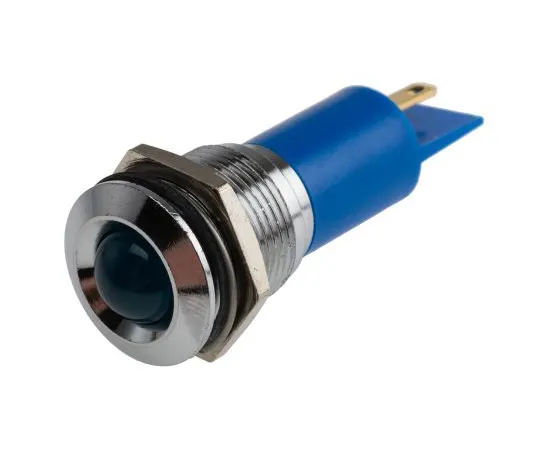

63-6584-94 RS PRO Blue Indicator, 115 V dc, 16mm Mounting Hole Size, Solder Tab Termination 208-245
Product Description
Product Model: 63-6584-94Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6584-94
Product Brand: RS PRO
Features
- Pin Protection Tube, Fixing Nut, Washer, Gasket
- LED Indicator, 16 mm Mounting, 130 Vac, 230 Vac/115 Vac
- Brought to you by the trusted RS brand, this LED indicator features an embedded diffusion epoxy style lens and a protruding bezel. This indicator has a compact and robust body and is easily mounted with a solder tab. It also has IP67 grade intrusion protection, making it ideal for harsh environments. These LED indicators have low power consumption and long life to meet a variety of equipment needs.
- Features and Benefits: 10 mm color diff*** round lens 18.3 mm chrome bezel IP67 grade seal structure Estimated life: 100,000 hours 0.11 inches (2.8 x 0.8 mm) Terminal Operating Temperature Range: -25 → +60 °C
Spec
- Voltage Rating:115V dc
- Light Output Colour:Blue
- Mounting Hole Size:16mm
- Lamp Type:LED
- Termination Type:Solder Tab
- Bezel Style:Prominent
- Bezel Colour:Chrome
- Current Rating:3mA
- Intensity:280mcd
- Length:62.5mm
- CODE No.:208-245
