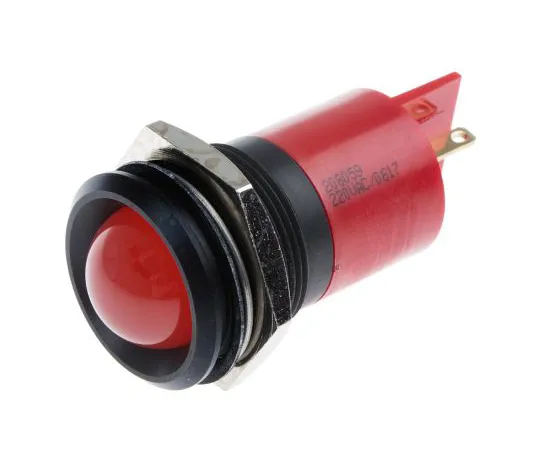

63-6584-65 RS PRO Red Indicator, 230 V ac, 22mm Mounting Hole Size, Tab Termination 208-059
Product Description
Product Model: 63-6584-65Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6584-65
Product Brand: RS PRO
Features
- * If you are not using spare neutrals, it is recomm***ed to insulate them.
- RS Pro LED Indicator 22 mm Attached, IP67
- This RS Pro LED indicator product has an IP67 rated enclosed structure and is suitable for harsh environments. Compact and robust, these LED indicators feature chrome bezels and solder tab terminals for easy installation. These LED indicators are very bright, low power consumption and long life. All models boast high reliability and excellent quality.
- Features and Benefits: 16 mm color diffusion lens 25 mm diameter chrome bezel 2 negative terminals 0.11 inches (2.8 x 0.8 mm) terminal mounting hole size: diameter 22 Operating temperature range: -25 → +60 °C Estimated life: 60,000 hours
- Why choose LED
- For superior performance, the LED is the only way forward as it is enhanced by long life and low power consumption. However, there are many other possible reasons, including: Temperature — LEDs generate much less heat than incandescent or neon lights. Directional — LEDs emit light in only one direction, reducing the need for additional components such as reflectors. However, this is not the case when LED indicators are ***d as circuit board signals. Cost - Generally, LEDs are a cost-effective solution for purchase and operation beca*** of their higher supply compared to standard bulbs and pilot lights.
- What protection do these indicators provide?
- Each LED indicator has an IP67 protection rating. It is not completely waterproof, but it is completely protected from dust and other small particles. It can also be completely immersed in water (maximum depth 1 m) for up to 30 minutes. How this feature is ***d dep***s on the application, but if the above guidelines are followed correctly, the LED will continue to work smoothly.
- Use of Indicators
- The *** of LED indicators is entirely up to you. It can be fixed to the circuit board and attached to push buttons and switches. These types of indicators are primarily ***d in circuit board and electronic design. This is beca*** they are relatively small in size compared to other types of indicators, such as car rotation signals.
Spec
- Voltage Rating:230V ac
- Light Output Colour:Red
- Mounting Hole Size:22mm
- Lamp Type:LED
- Bezel Style:Prominent
- Current Rating:3mA
- Intensity:82mcd
- Length:61mm
- CODE No.:208-059
