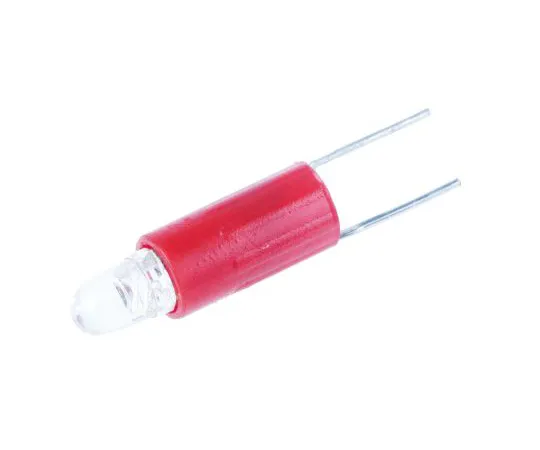

63-6582-74 LED Reflector Bulb, Bi-Pin, Red, Single Chip, 3 mm Lamp, 4.25mm dia., 12V ac/dc 205-785
Product Description
Product Model: 63-6582-74Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6582-74
Product Brand: RS PRO
Features
- 2-pin AC/DC LED indicator, T1
- This LED indicator on the RS Pro is a single chip with a simple lead pin connection for easy installation. The T1 size maintains good brightness over a long service life and is ideal for a variety of measurement applications. All models boast excellent quality.
- Features/Advantages
- 12, 24, 28 V ac/dc Type
- Half-wave rectifier
- Anode that can be identified by the + symbol on the body (when using DC)
- Reverse polarity protective diode
- Estimated life: 100,000 hours
Spec
- Voltage Rating:12V ac/dc
- Light Output Colour:Red
- Intensity:85mcd
- Lamp Base:Bi-Pin
- Lamp Size:3 mm
- Chip Type:Single Chip
- Diameter:4.25mm
- Length:17mm
- Peak Wavelength:630nm
- Life Hours:100000h
- CODE No.:205-785
