Features

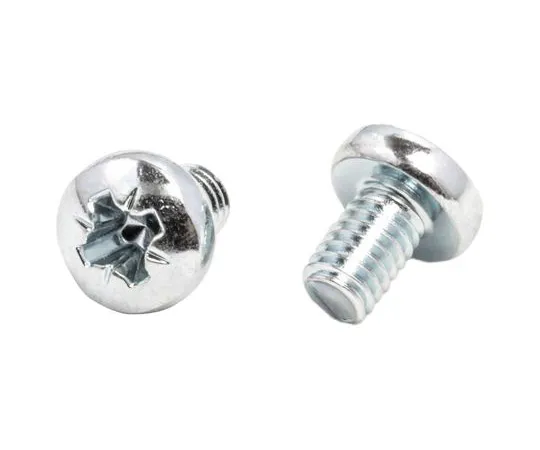

• This pan head Phillips head machine screw conforms to the DIN7985 standard.
• Refer to the Data Sheet and Clasp Selection Guide to identify the pan head flat head screw product. These two types of documents allow you to find screws of different sizes and lengths.
• Metric Screws - BZP Steel
• Small screws are full screws that are specifically designed to be ***d in tapped holes or with nuts and washers that fit through holes. Machine screws are available in a variety of configurations, materials, driver head types, and sizes.
• As the name suggests, they are ***d to secure various components in electrical appliances, tools, machinery, electronics, and vehicles among many other things. It is also similar to a bolt, but has a groove hole in the head so you can turn it with a screwdriver.
• Easy to assemble
• our company pan head Phillips machine screws are designed to allow you to experience ease of assembly.
• Features/Advantages
• Galvanizing protection - Prevents rust and oxidation Transparent passivation Moisture resistance
• A machine screw is similar to a bolt but has a socket or a slot in its head that allows it to be turned by a screwdriver
• The shank on a machine screw is straight rather than tapered with a full thread which is uniform along the entire length
• Machine screws do not tap their own thread into materials like wood screws do but are designed to be fastened into pre-tapped holes in the parts they are fastening together
• Having a threaded hole creates a stronger joint and results ina higher quality product
• Typical ***
• Outdoor
• Wet environment
• Outdoor
• Wet Environment
• What is a Pozidriv Head Type
• Pozidriv, sometimes shortened to Pozi, stands for positive drive
• This head type has a cross recess in the centre with four small indentations around it creating 8 points of contact
• This design provides improved engagement and contact with the screwdriver and prevents ejection force when tightening or loosening the machine screw
• What is Bright Zinc Plating
• BZP is a shiny coating is applied to the steel, this process prevents corrosion and rusting
• If the application is situated withina harsh environment, BZP will provide much-needed longevity and reliability
• Although it may not be as effective as stainless steel, the added benefit would be the price
• As stainless steel is completely rustproof but expensive, BZP Steel offers a great solution and is massively cost-effective
• Features and Benefits
• Pozidriv head type for improved screwdriver grip Pan head design for a flat bearing surface Bright Zinc Plated steel for resistance to corrosion Economical and hard wearing Meets DIN 7985 Standards
• What are Machine Screws ***d For
• Machine screws are designed to hold separate components together ina wide range of applications such as industrial machinery and vehicle engines
• They are screwed through pre-drilled tapped holes in 2 components and can be fastened at the rear with a nut
• This bright zinc plated steel pan head machine screw is ideal for domestic and commercial ***
• Applications include
• Electrical panel building PCB Prototyping Circuit board mounting General production engineering General maintenance and repair
• Light fastening applications
• Frequently Asked Questions
• What Does M2.5, M3, M3.5, M4, M5 Mean
• These measurements are found on metric screws, The 'M' stands for Metric
• The number after the 'M' is the nominal outer diameter of the screw in mm
• How Do I Cut a Machine Screw
• Damage to the machine screw threads can prevent parts from fitting together properly, therefore care has to be taken when cutting them and the correct tools ***d
• Cutting a small machine screw (up to standard size #10 or metric size M5 (5 mm) Use a pair of multipurpose wire strippers or electricians pliers that feature M2.5, M3, M3.5, M4, M5 threaded holes
• These holes are designed for cutting bolts without damaging the thread
• Open the jaws and thread the machine screw into the correct size hole to the distance required
• Squeeze the tool handles closed and the screw will be cut at the point where the two halves of the jaws come together
• You will have a clean cut without any thread damage
• Cutting a large machine screw (larger than size #10 or metric size M5 (5 mm) This is best done using a hacksaw
• Thread the nut on the screw until it reaches the desired point on the head side of the cutting line
• Place the screw ina vice or clamp to keep it secure when cutting and cutting the screw as straight as you can
• When you unthread the nut it will repair and realign any threads that may have been damaged by the saw blade.
