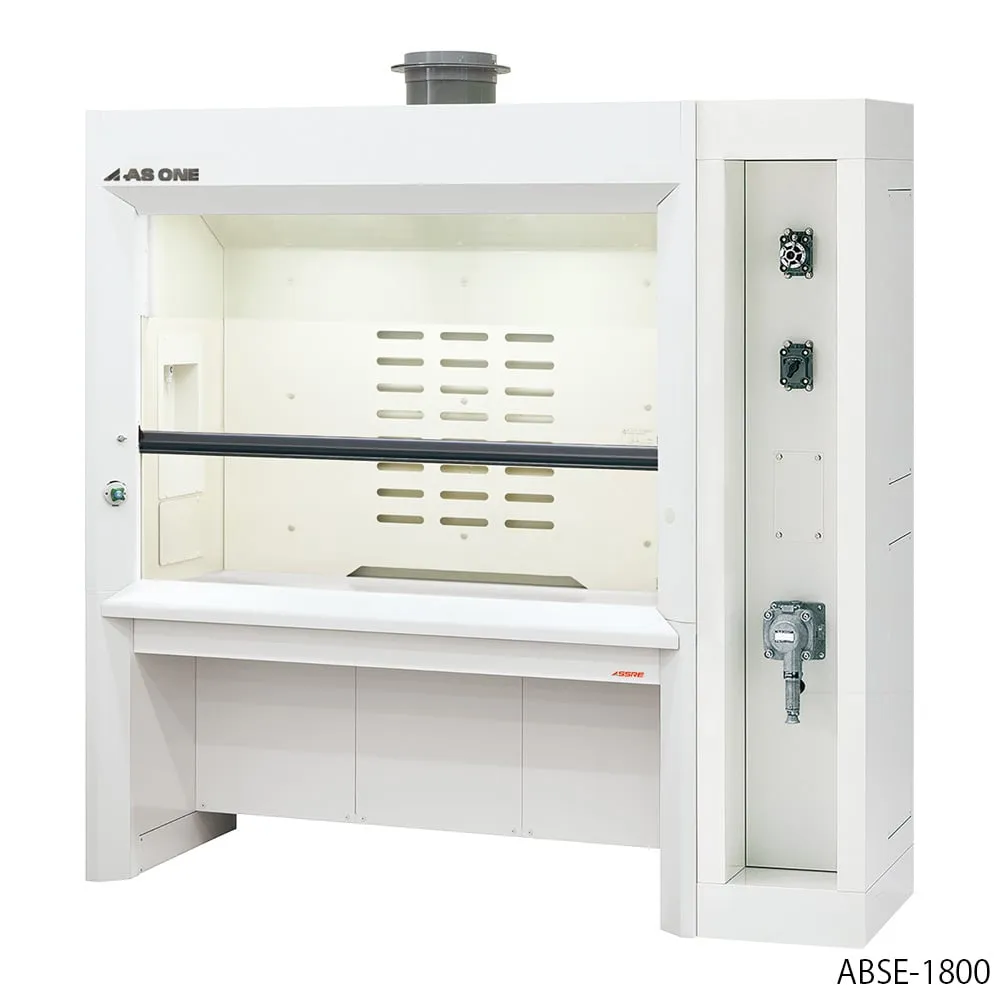

Spec

• specifications: deep
• External Dimensions (mm): 1650 x 980 x 2250
• Inner Dimensions (mm): 950 x 755 x 1200
• Weight (approx. kg): 385
• Control wind speed: 0.5 m/s (Opening height of sash at work: 400 mm)
• Material: Exterior/Steel (Powder Coating Finish), Interior/Chemical-Resistant/Heat-Resistant Board (Flame Retardant/Phenolic Resin Laminated Board), Work Surface/Epoxy Resin Top Plate Integrally Molded Product (32 mm Thickness)
• Lifting Sash: Tempered Glass (5 mm Thickness), with Balance Weight Type Opening Limiting Key (Height 400 mm), Handle/ABS Resin
• Hydrant: Chemical-Resistant Coating Remote Control Type/1 Location Water Supply Connection Opening G1/2 (Female Screw Stopper)
• Drain Port: Drain Connection Port 25 A with Recessed Resin Sink and Drain Trap
• Outlet: 1 (Pressure and Explosion-Proof Outlet 100 VAC 15 A 3P d2G4)
• Lighting: Pressure and Explosion-Proof Fluorescent Lamp 20 W/40 W (Frontage 1800 mm) ExdesIICT5
• Operation Switch/Indicator Lamp: Pressure-Resistant Explosion-Proof Type (d2G4) Operation Switch/Illumination Switch/Power Indicator Lamp/Energy-Confirmation Indicator Lamp Included
• Exhaust Connection: PVC (Vinyl Chloride Resin) Volume Damper Phase Flanged
• Power Connector: Pressure-Resistant Explosion-Proof Type (d2G4) Junction Box
• [Exhaust]
• Air volume (m3/min): 13
• Duct Connection Port: 200 A
• Required Duct Diameter (φmm): 200
• [Ancillary Facilities]
• Fluorescent Lamp (Pieces): 20 W x 1
• *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
• *Exhaust fan is not included. Please contact us.
• *The sash can also be made of mesh glass. Please contact us.
