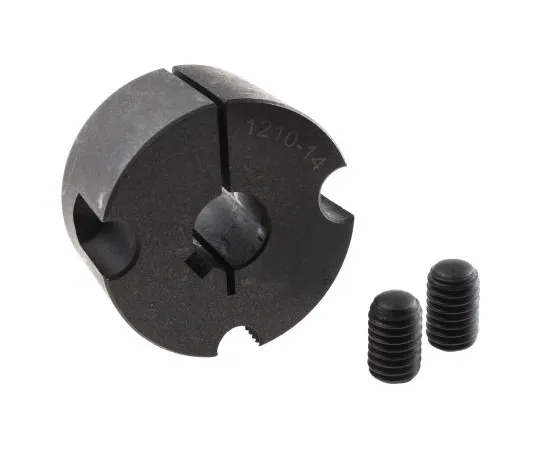

63-6572-72 RS PRO Taper Bush 1210 14mm Shaft Diameter 183-013
Product Description
Product Model: 63-6572-72Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6572-72
Product Brand: RS PRO
Features
- Two grab screws and installation instructions are included.
- The keyway is a British metric BS4235: Pt 1: 1972 and complies with ISO recomm***ations. Where the keys are ***d, they must be side-mounted in parallel and must have clearance at the top. The keyway depth is measured in the center.
- Taper Bush
- Easy and quick fixing to the drive shaft with taper bushingCompatible with taper bush pulleys and sprockets Use unique 4-hole design to ensure accurate fit
Spec
- Bush Series:1210
- Shaft Diameter:14mm
- Outside Diameter:47.5mm
- Length:25mm
- Maximum Tightening Torque:19.6Nm
- CODE No.:183-013
