Features

• Complies with FCC Laws and Regulations, Part 68 (TIA-1096 A), supported by the National Telecommunications Industry Association.

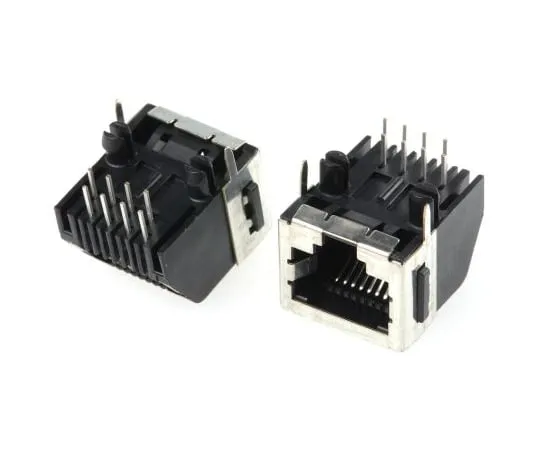

• TE Connectivity Cat 3 RJ45 Single Port Modular Jack Connector
• The Cat5 RJ45 Stack Modular Jack Connector product has a low profile design that allows more ports to be attached with less space on the board. This RJ45 stack modular jack is equipped with a side entry (light angle mounting) or a top entry (vertical mounting). EMI/RFI protection with shielding is provided and optional substrate or panel grounding is provided. This RJ45 stack jack connector has built-in LEDs to identify line status and collisions. Built-in LEDs eliminate the need for a separate indicator to save space on the system. The RJ45 jack housing is made of UL 94V-0 flame-retardant polyester with gold-plated contacts. This RJ45 Cat5 stack modular jack exceeds the -40 dB NEXT (near *** crosstalk) requirement for all EIA/TIA 568 A-compliant 100 MHz pair combinations. All models boast high reliability and excellent quality.
• Features and Benefits: Stack port for substrate space-saving
• Top/side entry mounting
• Shield for EMI/RFI protection
• Substrate and panel grounding options
• Built-in LED for line status display
• UL94V-0 flame-retardant housing
• Application: The RJ45 Cat 3 connector is suitable for applications that require high performance in invoices, data and high-speed networks. These applications include communications (Phone, Router, Server), computers, office equipment, home appliances, and wireless base stations.
