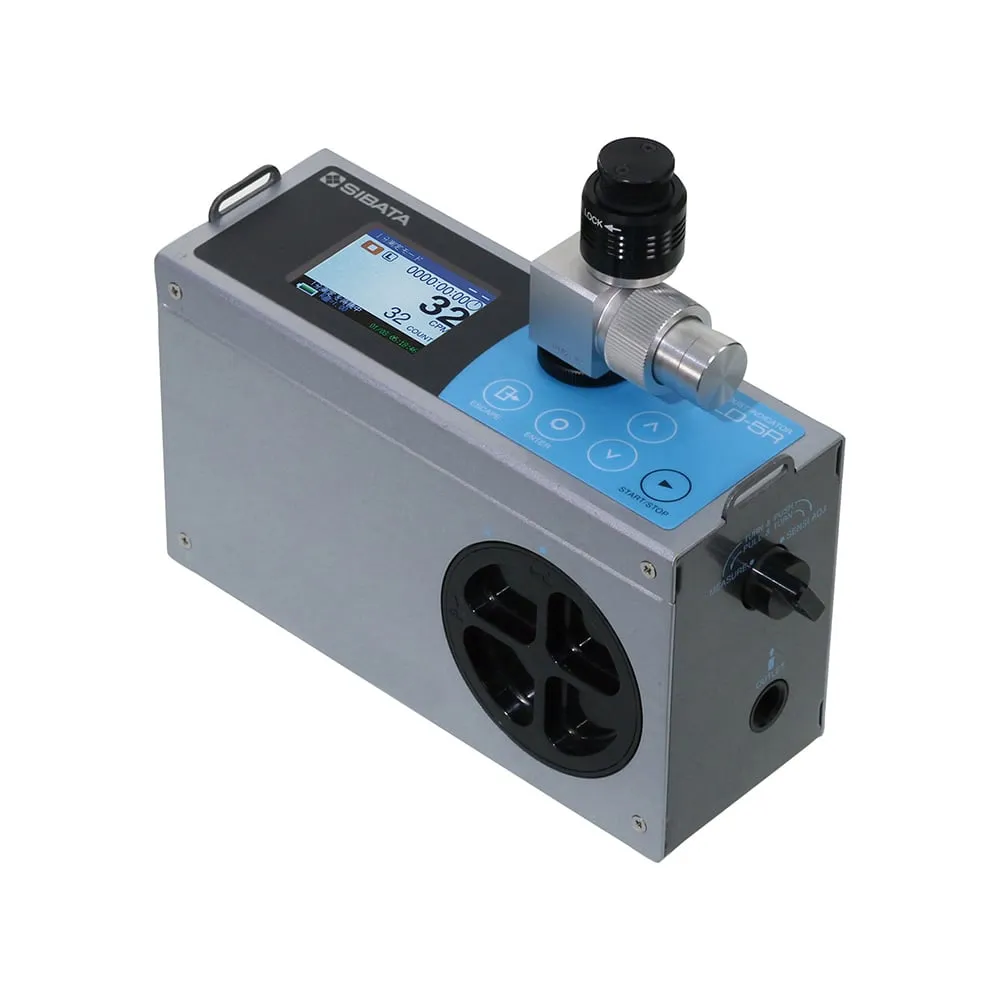

68-5114-07 PM2.5 Digital Dust Meter LD-5R
Product Description
Product Model: 68-5114-07Product Brand: SIBATA SCIENTIF […]
Contact Us
Product Details
Product Model: 68-5114-07
Product Brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
Features
- It is a simple measuring instrument with an emphasis on mobility and can easily measure the concentration of PM2.5 particles susp***ed in the air.
- It is portable and can easily measure PM2.5 particles anywhere in a short time.
- This is a light scattering type dust meter with a PM2.5 particle separator attached to the air intake port.
- By replacing the PM2.5 granulator with the supplied standard air inlet, it can be ***d for general susp***ed dust measurement in school environmental hygiene, building hygiene and work environments.
- Measurement values recorded by logging measurement can be imported into the PC using optional communication software.
Spec
- Mass: approx. 1.2 kg
- Height H (mm): 109.5
- Width W (mm): 184
- Depth D (mm): 68
- Power Supply: AA Batteries/Alkaline Batteries x 6, AC Adapter/100 VAC 50/60Hz
- Operating ambient temperature range: 0~40°C
- Display: Display/color graphic liquid crystal
- Display contents: Total count, Measurement time, Bar graph, Instantaneous value (CPM), Tr*** graph, Current time, Mass concentration conversion value, K value, Battery level, Failure alarm
- Output: Non-Voltage Pulse Output/Open Collector Withstand Voltage 12Vmax, Voltage Output/0~1 V for 0~1000CPM/0~1 V for 0~10,000 CPM
- Battery Operating Time: Approximately 10 hours
- measurement mode
- Timer Measurement: Setting Time: 1 Minute, 2 Minute, 10 Minute, 60 Minute, 240 Minute, Optional Setting
- Manual logging settings: Recorded number of points/60,000 points recording, Period minimum/1 second, Measurement time maximum/9999 hours 59 minutes, Recorded content/CPM value, Measurement start time, Number of data, Recording period, etc.
- span checking: sensitivity auto correction
- BG Cancel: BG measurement, recording and subtraction
- Measurement principle: light scattering method
- Communication (USB): Reading of data by dedicated communication software (optional) and setting of the main unit
- Operating ambient humidity: 5~90%rh (no condensation)
- Granulation method: cyclone system
