Electronic/Electrical Parts and Controll Equipments

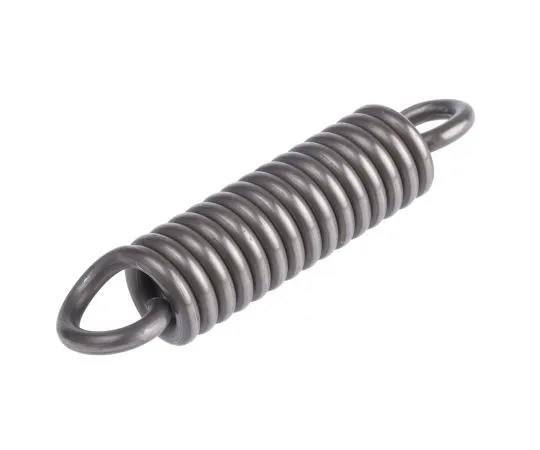

63-6550-85 RS PRO Steel Extension Spring, 78.5mm x 18mm 121-393
Product Description
Product Model: 63-6550-85Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6550-85
Product Brand: RS PRO
Features
- Material conforms to DIN17223 Class C or BS1408 CR3. Dimensions conform to DIN 2097 (grade 2). It has an oil finish.
- Piano Wire Tensile Spring
- A right-handed (clockwise) spiral spring and looped *** made of high extension strength piano wire.
- Features and Advantages: Absorbs and stores energy on both sides Resistance to tension Initial tension can be set according to individual requirements Coil spring resisting elongation Use:
- Interior and exterior garage door assembly Vise plier carburetor Trampoline cleaning equipment Agricultural machinery
Spec
- Quantity:1bag(5pieces)
- Material : Steel
- Free Length : 78.5mm
- Maximum Ext***ed Length : 93.50mm
- Outside Diameter : 18mm
- Wire Diameter : 3.6mm
- Initial Tension : 630N
- Spring Rate : 35.8N/mm
- CODE No.:121-393
