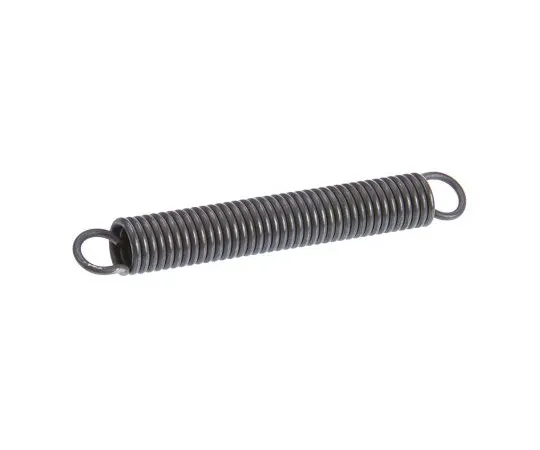

63-6550-81 RS PRO Steel Extension Spring, 87.2mm x 12mm 121-321
Product Description
Product Model: 63-6550-81Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6550-81
Product Brand: RS PRO
Features
- Material conforms to DIN17223 Class C or BS1408 CR3. Dimensions conform to DIN 2097 (grade 2). It has an oil finish.
- Piano Wire Tensile Spring
- A right-handed (clockwise) spiral spring and looped *** made of high extension strength piano wire.
- Features and Advantages: Absorbs and stores energy on both sides Resistance to tension Initial tension can be set according to individual requirements Coil spring resisting elongation Use:
- Interior and exterior garage door assembly Vise plier carburetor Trampoline cleaning equipment Agricultural machinery
Spec
- Quantity:1bag(5pieces)
- Material : Steel
- Free Length : 87.2mm
- Maximum Ext***ed Length : 134.80mm
- Outside Diameter : 12mm
- Wire Diameter : 1.8mm
- Initial Tension : 141N
- Spring Rate : 2.52N/mm
- CODE No.:121-321
