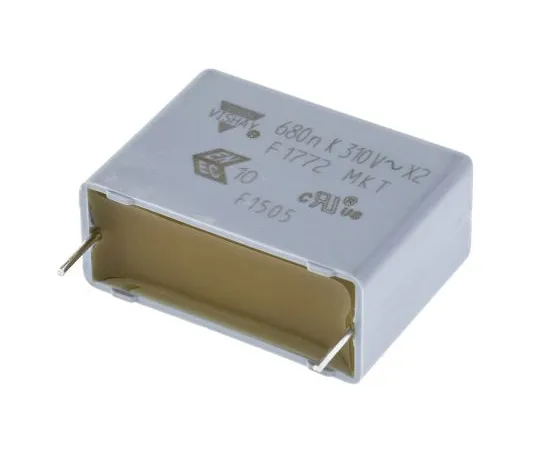

63-6550-33 Vishay 680nF Polyester Capacitor PET 310V ac ±10% F1772 Series Through Hole F17724682000
Product Description
Product Model: 63-6550-33Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-6550-33
Product Brand: Vishay
Features
- (EN132400) CEI384-14 iss
- 2 Continuing Certification, VDE0565-1 Class x 2, SEV1055 1978, DEMKO CEI384-14 1981, SEMKO CEI384-14 1981, NEMKO CEI384-14 1981, FIMKO CEI384-14 1981, UL1283/UL1414 (Up to 1 μF), CSA222 No. 8-M 1986, IMQ CEI40-7/V1-1981, OVE CEI384-14 1981
- X2 Class Anti-Interference Capacitor, F1772-2000 Series 310 V ac
- Interference Suppression Metalized Film Capacitor Attached Between Phases or Between Phases and Neutrals Epoxy Resin Sealed Flame Retardant Case
Spec
- Quantity:1bag(10pieces)
- Capacitance : 680nF
- Voltage : 310V ac
- Mounting Type : Through Hole
- Lead Pitch : 27.5mm
- Series : F1772
- Tolerance : ±10%
- Dielectric : PET
- Length : 31mm
- Depth : 13mm
- Height : 23mm
- Dimensions : 13 x 23 x 31mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +110°C
- Tolerance Minus : -10%
- CODE No.:118-205
