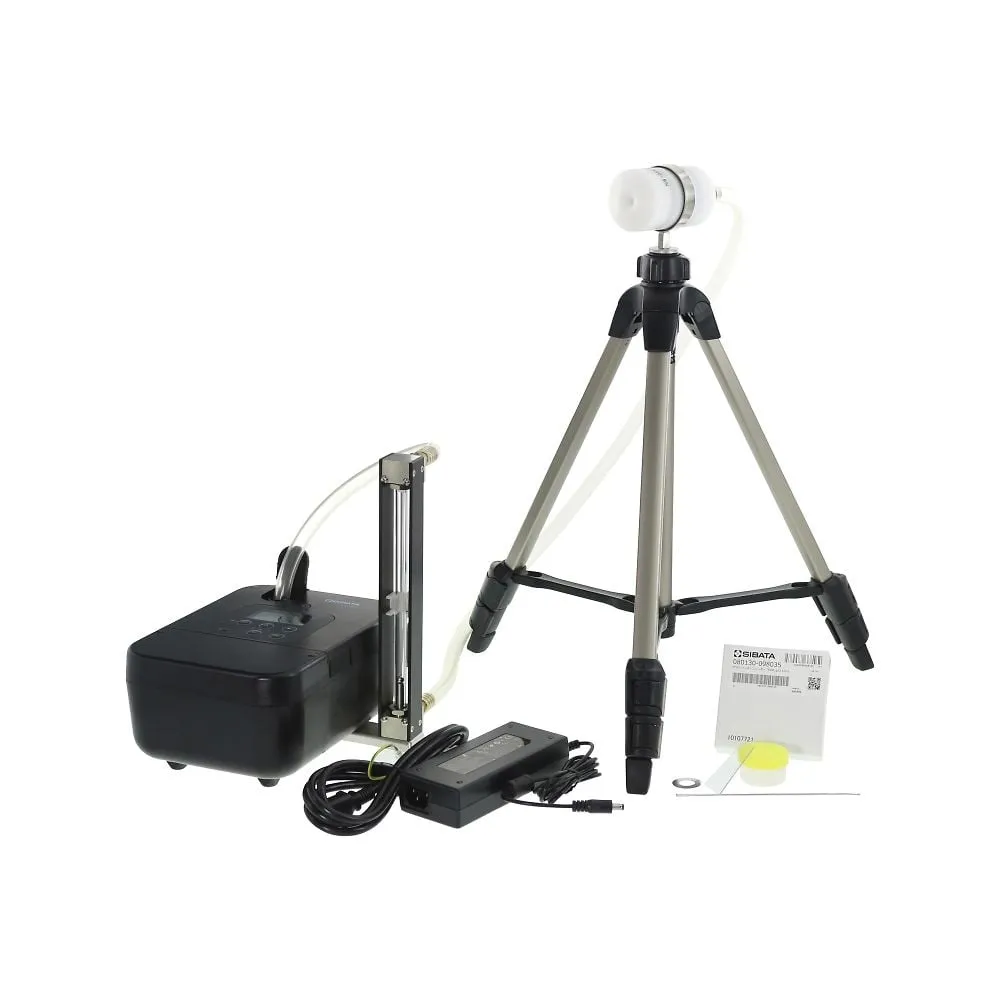

65-3693-57 PM4 sampler set with flow indicator 354
Product Description
Product Model: 65-3693-57Product Brand: SIBATA SCIENTIF […]
Contact Us
Product Details
Product Model: 65-3693-57
Product Brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
Features
- It is an air sampler that collects dust in the working environment with the inertial impingement type particle characteristics of PM4 (4 μm50% cut).
- The suction flow rate is 20.0 L/min. The suction pump LVS-30 type with the constant flow function is a suction pump for both alternating current ***. A battery is also included with this set.
Spec
- Partitioning system: Inertial collision type 354 (PM4 characteristic: 20 L/min)
- Operating temperature range: 0 ~ 40 degrees Celsius
- Power source: 100 VAC or lithium-ion rechargeable batteries
- Suction Pump LVS -30 Type
- Dimensions: 168 (W) x 228 (D) x 111 (H) mm
- Mass: About 2.3 kg
- Inertial Collision Granulator Type 354
- Dimensions: phi 54 x approx. 128 (D) mm
- Mass: About 220 g
- Accessories: Inertial Collision Separator NW -354 Type, Suction Pump LVS -30 Type, Battery Unit LI -30 Type, AC Adapter ATS090-P 240 Type, Power Cable, Holder Band, Tripod, Toaron Tube (phi 10 x 14.5 mm)/10 m, TF 98 R Filter phi 35 mm/100 pieces, Grease, Spatula, Spatula, Grease Guide, Flow Indicator FI -10 N Type, Flow Indicator Mounting Fitting LVS -30 Type
- Securities Code: 080120 -43544
