Features

• Hydraulic systems operate at high pressure. In addition, fittings and adapters are subject to severe loads such as vibration and uncontrollable pressure peaks.　Pay special attention to the product specifications when selecting fittings and adapters.
• For different-sized adapters, *** products with lower pressure ratings.

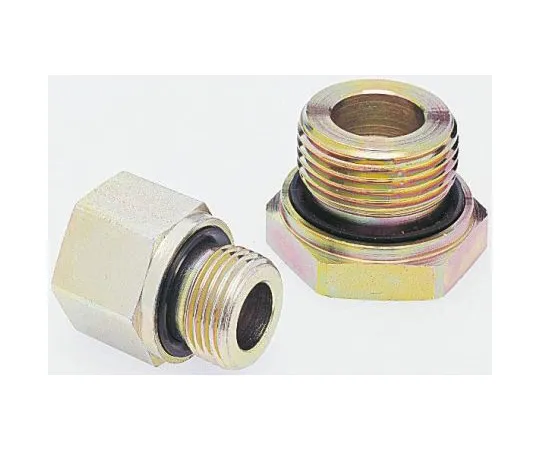

• BSP Reducer
• Male (Rs) BSP Parallel Screw - Female (Rp) BSP Parallel Screw This is a screw adapter for reduction.　The male screw port connection is sealed with a nitrile rubber seal.　The operating temperature range (no pressure reduction) is -30 to +100 °C.　High corrosion resistance is achieved by applying a chromate finish (yellow) to BS5200 compliant steel (500 hour salt spray test).　An ideal port fitting for BSP reusable fittings and crimped hose assemblies with a 60 ° female cone.
• Features and benefits: Visible penetration of progressive rings prevents blowouts Excellent sealing performance for a wide variety of applications including vacuum and hydraulic systems To reduce concentration at the penetration, evenly distribute stress The overall dimensions are compact, making EO joints ideal for tight spaces
