Electronic/Electrical Parts and Controll Equipments

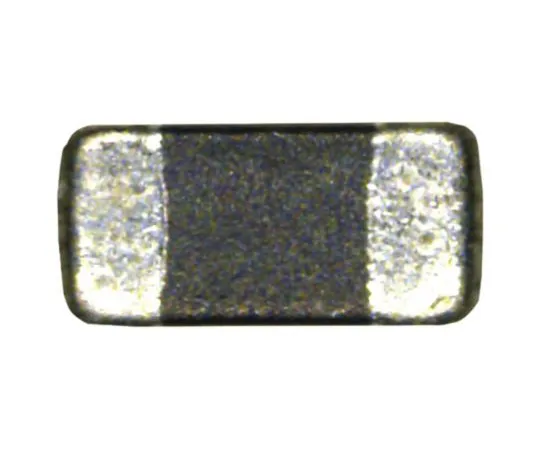

63-6548-30 Murata Ferrite Bead (Chip Ferrite Bead), 1 x 0.5 x 0.5mm (0402 (1005M)), 22Ω impedance at 100 MHz BLM15HB221SN1D
Product Description
Product Model: 63-6548-30Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-6548-30
Product Brand: Murata
Features
- SMD0402 Ferrite Filter - BLM15EG/HB/HD/HG/PD/PG/PX Series
- Murata's BLM ferrite beads do not require a ground connection, making them ideal for *** in circuits with unstable ground lines. The ferrite beads act like resistors at noise frequencies, preventing distortion of the signal waveform while reducing the likelihood of resonance. The external electrode with a nickel barrier structure provides excellent solder heat resistance. BLM_P ferrite beads correspond to power lines up to 6 A dc. The BLM_P type with a small DC resistor is ideal for high-current circuits. The BLM15EG model also has a smaller DC resistance. This series of ferrite beads is suitable for general ***.
Spec
- Quantity:1bag(25pieces)
- Package Type : 0402 (1005M)
- Impedance at 100 MHz : 22Ω
- Current Rating : 250mA
- Type : Chip Ferrite Bead
- Dimensions : 1 x 0.5 x 0.5mm
- Length : 1mm
- Depth : 0.5mm
- Height : 0.5mm
- Maximum DC Resistance : 1Ω
- CODE No.:110-100
