63-6547-84 Murata LQH55DN Series Type 2220 (5650M) Wire-wound SMD Inductor 680 μH ±20% Wire-Wound 190mA Idc LQH55DN681M03L
Product Description
Product Model: 63-6547-84Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-6547-84
Product Brand: Murata
Features

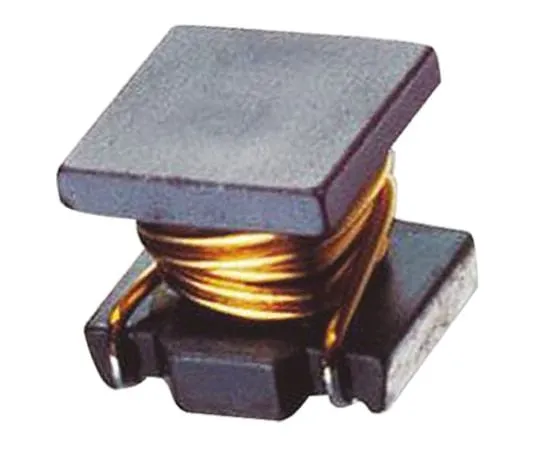

- Murata 2220 LQH55DN Series Wire Wound Inductor
- Coil inductors are designed to attenuate high frequency signals. High current resistance. Low DC resistance application: DC/DC converter, switch mode power supply.
Spec
- Quantity:1bag(25pieces)
- Inductance : 680 μH
- Maximum DC Current : 190mA
- Package/Case : 2220 (5650M)
- Length : 5.7mm
- Depth : 5mm
- Height : 4.7mm
- Dimensions : 5.7 x 5 x 4.7mm
- Tolerance : ±20%
- Maximum DC Resistance : 8.1Ω
- Series : LQH55DN
- Maximum Self Resonant Frequency : 1.9MHz
- Minimum Operating Temperature : -40°C
- CODE No.:108-826
