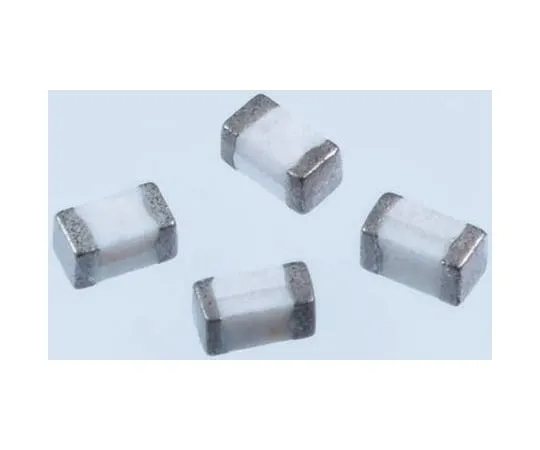

63-6547-49 Murata LQM18N Series Type 0603 (1608M) Shielded Wire-wound SMD Inductor 82 nH ±20% Wire-Wound 50mA Idc Q:10 LQM18NN82NM00D
Product Description
Product Model: 63-6547-49Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-6547-49
Product Brand: Murata
Features
- Murata 0603 LQQ18N Series High Frequency Chip Inductor
- Monolithic Inductor Employing Ferrite Core with Shield Screen Protecting from Interference from Peripheral Components
- Application: Resonant Circuit, Filter Circuit, and Self-Shock Circuit for Telecommunications Equipment
Spec
- Quantity:1bag(250pieces)
- Inductance : 82 nH
- Maximum DC Current : 50mA
- Package/Case : 0603 (1608M)
- Length : 1.6mm
- Depth : 0.8mm
- Height : 0.8mm
- Dimensions : 1.6 x 0.8 x 0.8mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 300mΩ
- Series : LQM18N
- Maximum Self Resonant Frequency : 245MHz
- Maximum Operating Temperature : +85°C
- CODE No.:107-801
