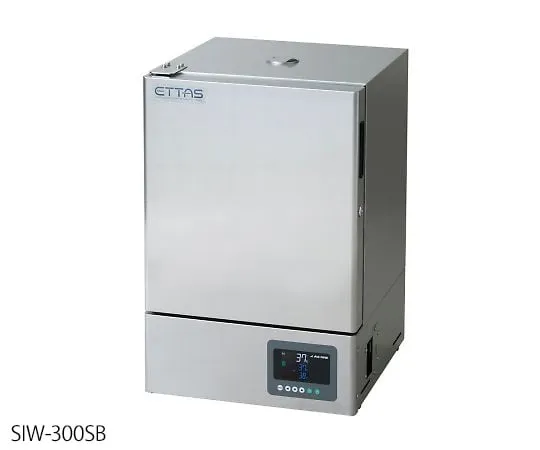

1-9005-41-28 Incubator (stainless steel type) with Pre-shipment Validation SIW-300SB
Product Description
Product Model: 1-9005-41-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-9005-41-28
Product Brand: AS ONE Corporation
Features
- [Incubator Features]
- It is equipped with a digital overrise prevention device as standard.
- The *** of a three-stage PID control system reduces overshoot and undershoot in a wide range of temperatures.
- This all-around type features 4 timer functions, a timer for specifying the day of the week and time, and 16 step 8 pattern program functions.
- The LCD display has excellent visibility and operability.
- [Features of Wireless Logger App]
- You can check the measured temperature and the set temperature from a distance.
- The measured temperature and the set temperature are stored in memory in the board at regular intervals.
- You can operate intuitively without a manual.
- Recorded data is automatically converted to CSV file attachments, and can be sent to a computer or other device by simply entering an email address. The file can be opened with a spreadsheet software such as EXCEL (R), and graphed, edited, or created.
- Even if you read the recorded data, the data is retained in the board even if the power is turned OFF until the data is erased.
- You can start/stop recording and erase from the app.
- Recording will stop automatically when the memory becomes full.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature points: 9 points at 37 degrees Celsius
- External dimensions (mm): 400 x 447 x 610
- Capacity (L): About 30
- Convection system: Natural convection air jacket
- Temperature control range: room temperature + 5 ~ 80 degrees C
- Time to reach 37 degrees: 80 minutes
- Temperature distribution (JTM K05): +/- 0.3 degrees C (at 37 degrees C)
- Temperature variation (JIS C 60068 -3 -5: 2006): +/- 0.3 degrees C (at 37 degrees C)
- Temperature Gradient (JIS C 60068 -3 -5: 2006): 1.5 degrees C (at 37 degrees C)
- Temperature control system: 3-stage PID control/SSR output
- Communication: Standard: Bluetooth ® 4.2/Distance: Class 2 (about 10 m)
- Logger function
- Recording method: Full stop (recording stopped in full memory)
- Recording period: 2 sec/10 sec/30 sec/60 sec/10 min/60 min
- Display period: 2 sec/10 sec/30 sec/60 sec/300 sec
- External Applications
- Features: Start/stop recording, read/erase recorded data/transfer to PC/list display, tr*** graph display (zoomable)
- Recording format: CSV format
- OS: iOS 11.4 or later
- Compatible models: iPhone 5s, 5c, 6, 6 Plus, 6s, 6s Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- Additional functions: Timer (ON Timer, OFF Timer, SV start, ON/OFF Timer)/Temperature gradient program of up to 16 steps x 8 patterns/Timer for specifying day and time of day
- Safety device: Overcurrent breaker digitally set indep***ent overrise prevention function/burnout mechanism (Heater OFF when sensor is disconnected)
- Heater capacity: 280 W
- Temperature Sensor: Platinum temperature measuring resistor Pt 100 ohm x 2 pieces (1 piece each for controlling temperature and preventing excessive rise)
- Shelf Pitch/Number of Racks: 35 mm/6 Racks
- Vent: 32 mm in diameter x 1
- Exterior/Interior: Stainless Steel (SUS 430)/Stainless Steel (SUS 304)
- Weight: approximately 20 kg
- Power supply: 100 VAC 50/60 Hz Cord length 2.3 m (3 P plug)
- Rating: 3.0 A
- Accessories: 2 sets of shelf rails and shelf boards
- *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
